Features

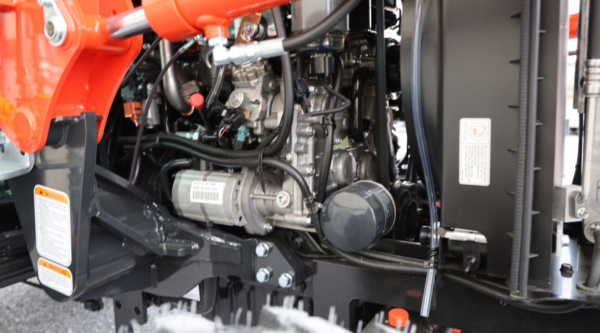

- Diesel engine with Daedong ECO Technology: The new 39.6 hp (29.5 kW) ECO-friendly diesel engine provides powerful performance and improves fuel efficiency while reducing noise levels.
- Power Steering: Responsive, powerful and comfortable steering reduces operator fatigue. The power steering system is robustly designed for maneuvering in soft soil and for front loader operation.

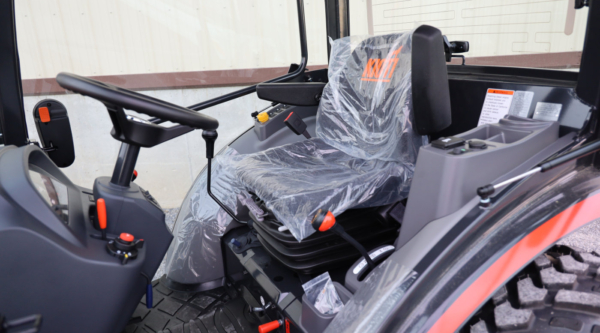

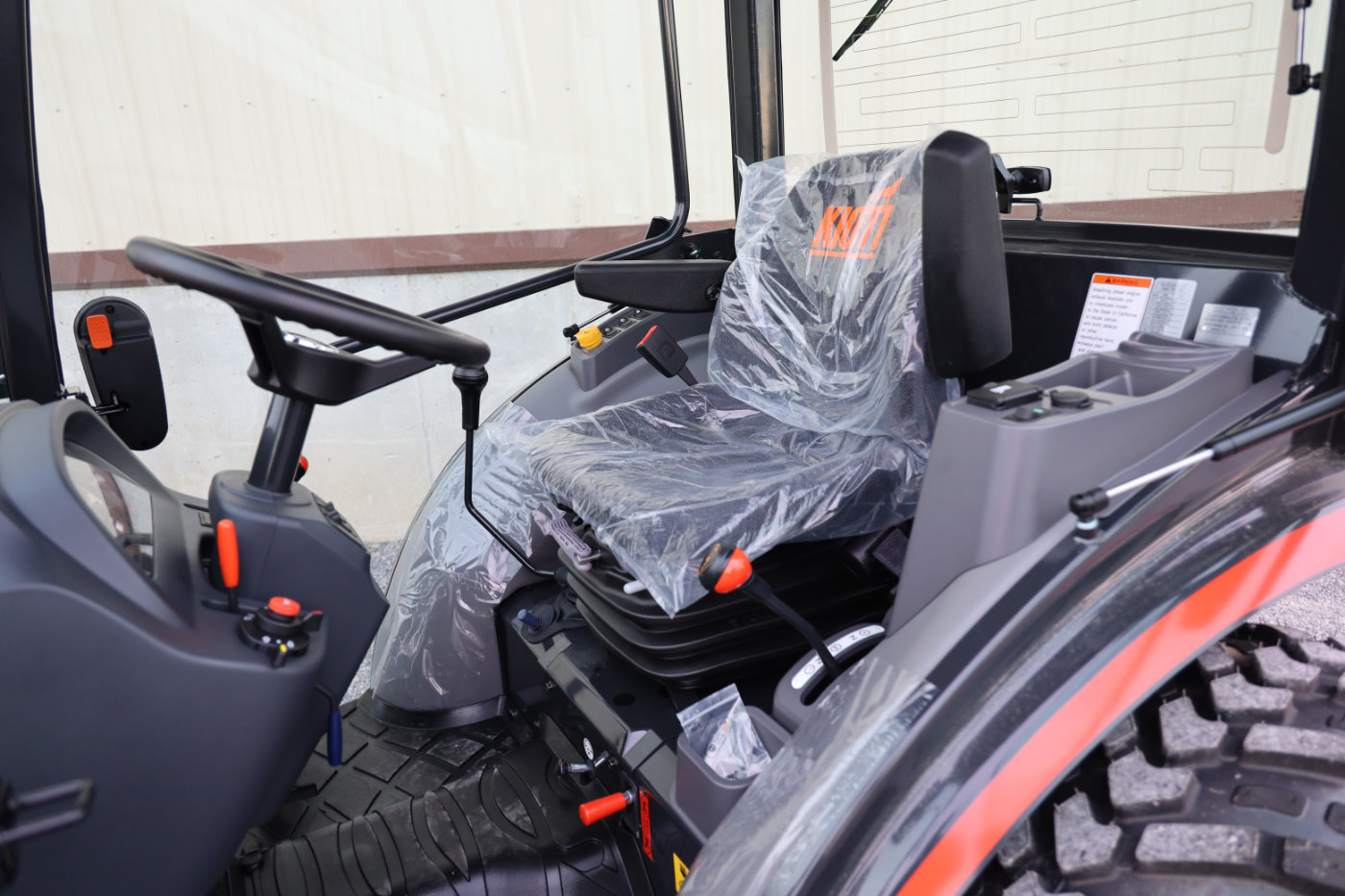

- Deluxe Suspension Seat: No matter what the task may be, the adjustable suspension seat with dual armrests allows the operator to ride in comfort.

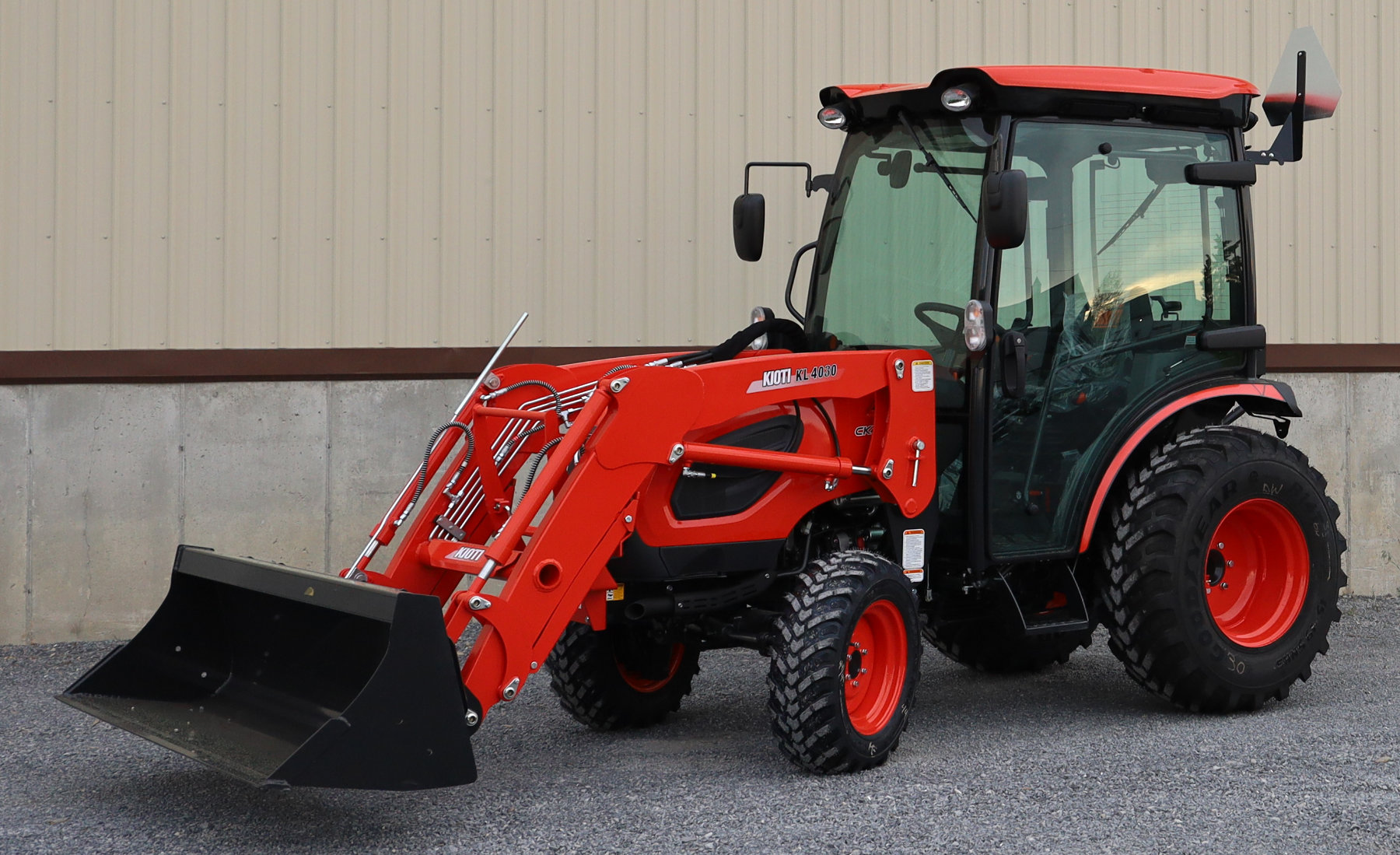

- Single Lever Joystick: Front end loader work is made easier by the use of a single lever joystick. The lever returns to neutral when released. A float position allows the bucket free flotation over the ground surface.

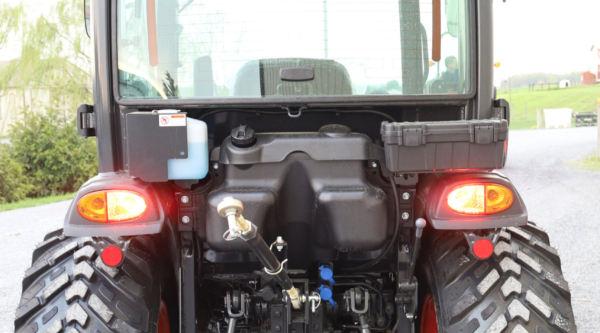

- Rear PTO: Rear PTO is standard and mid PTO is optional.

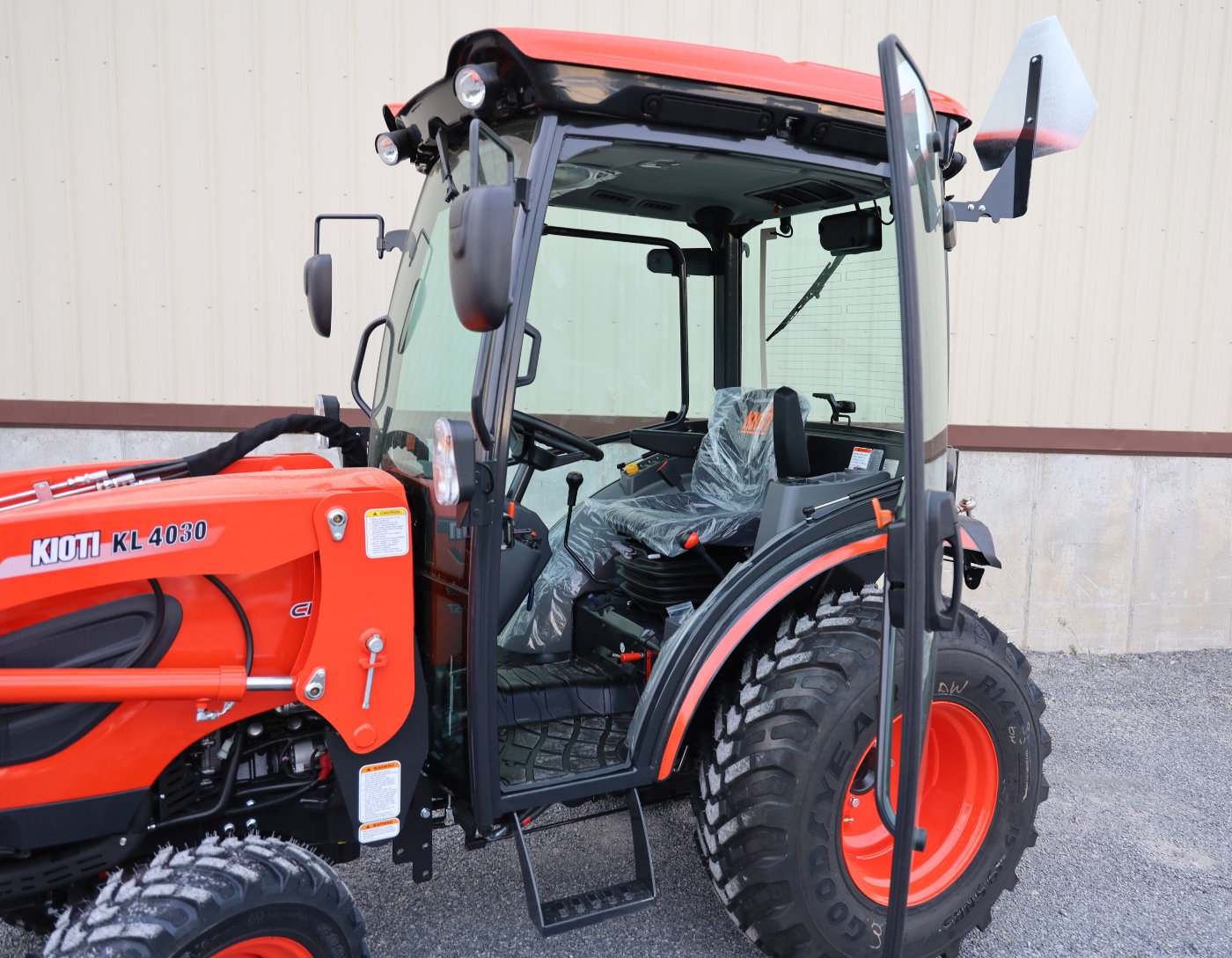

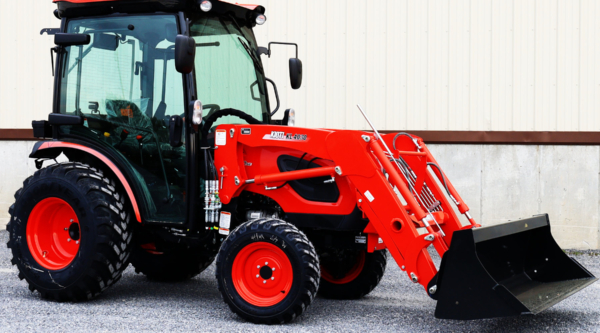

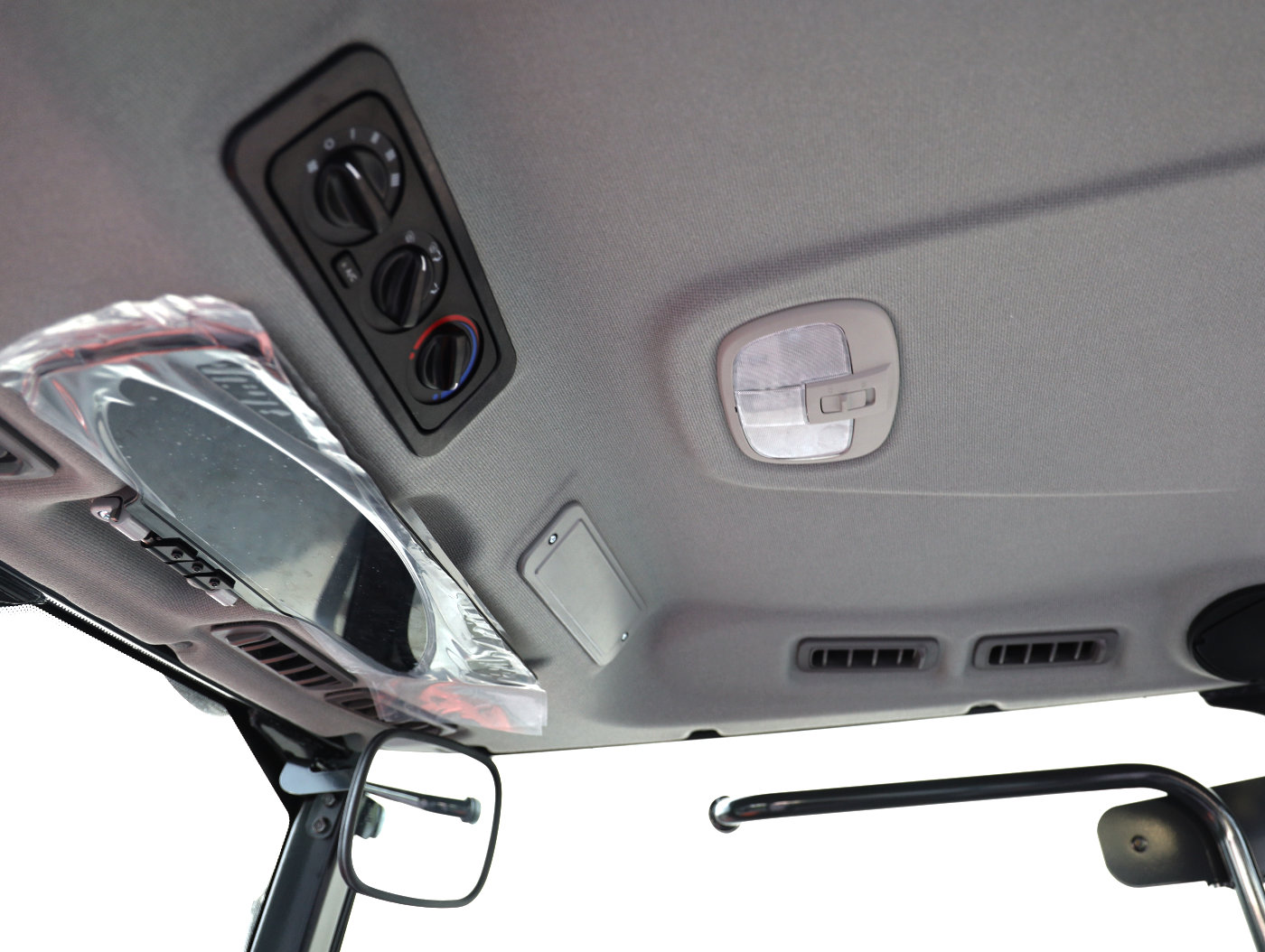

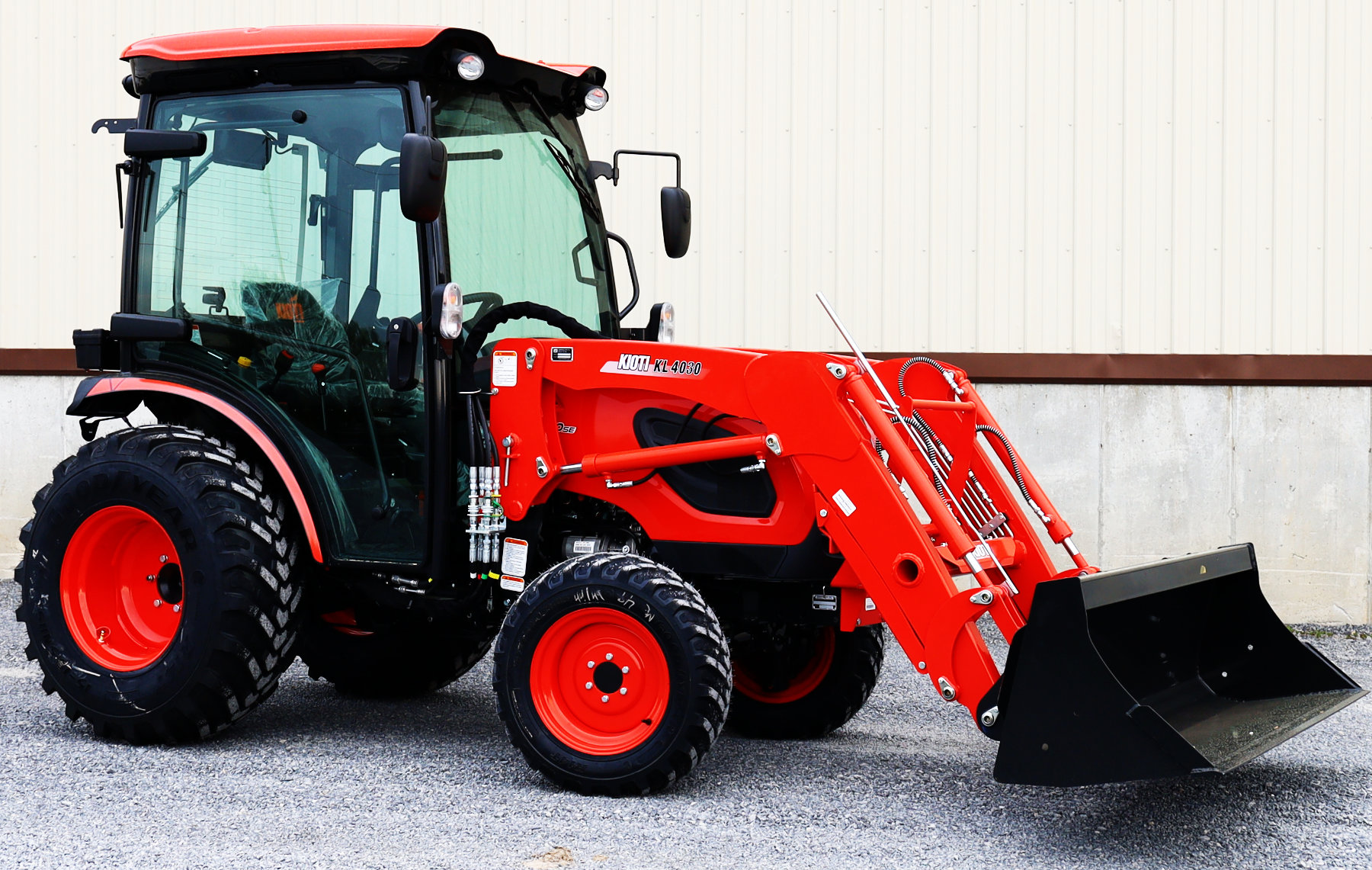

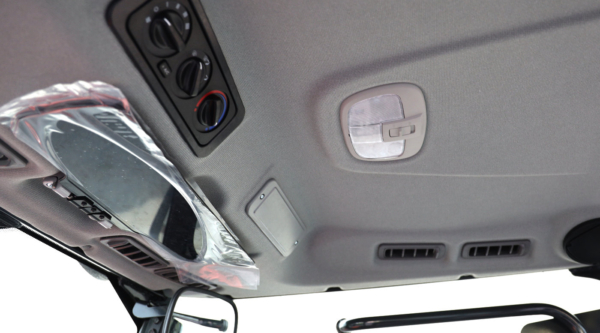

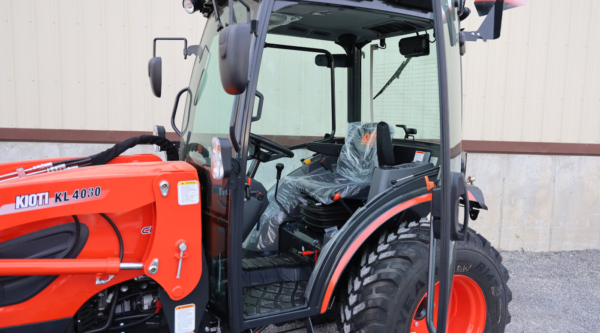

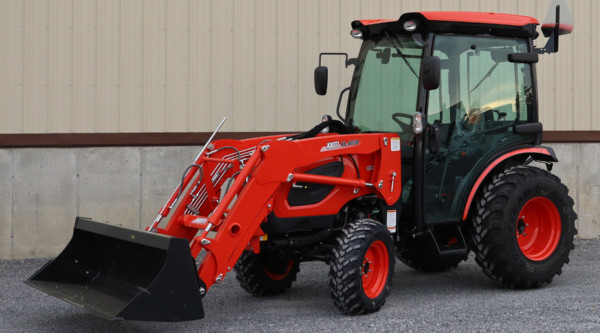

- Factory-Installed Cab: With added features and benefits, including A/C and heat, the factory-installed cab allows operators to perform tasks throughout the year, comfortably.

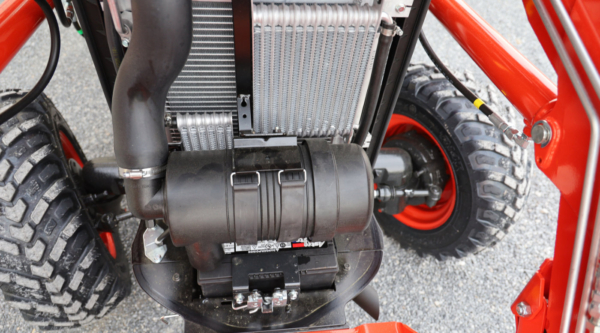

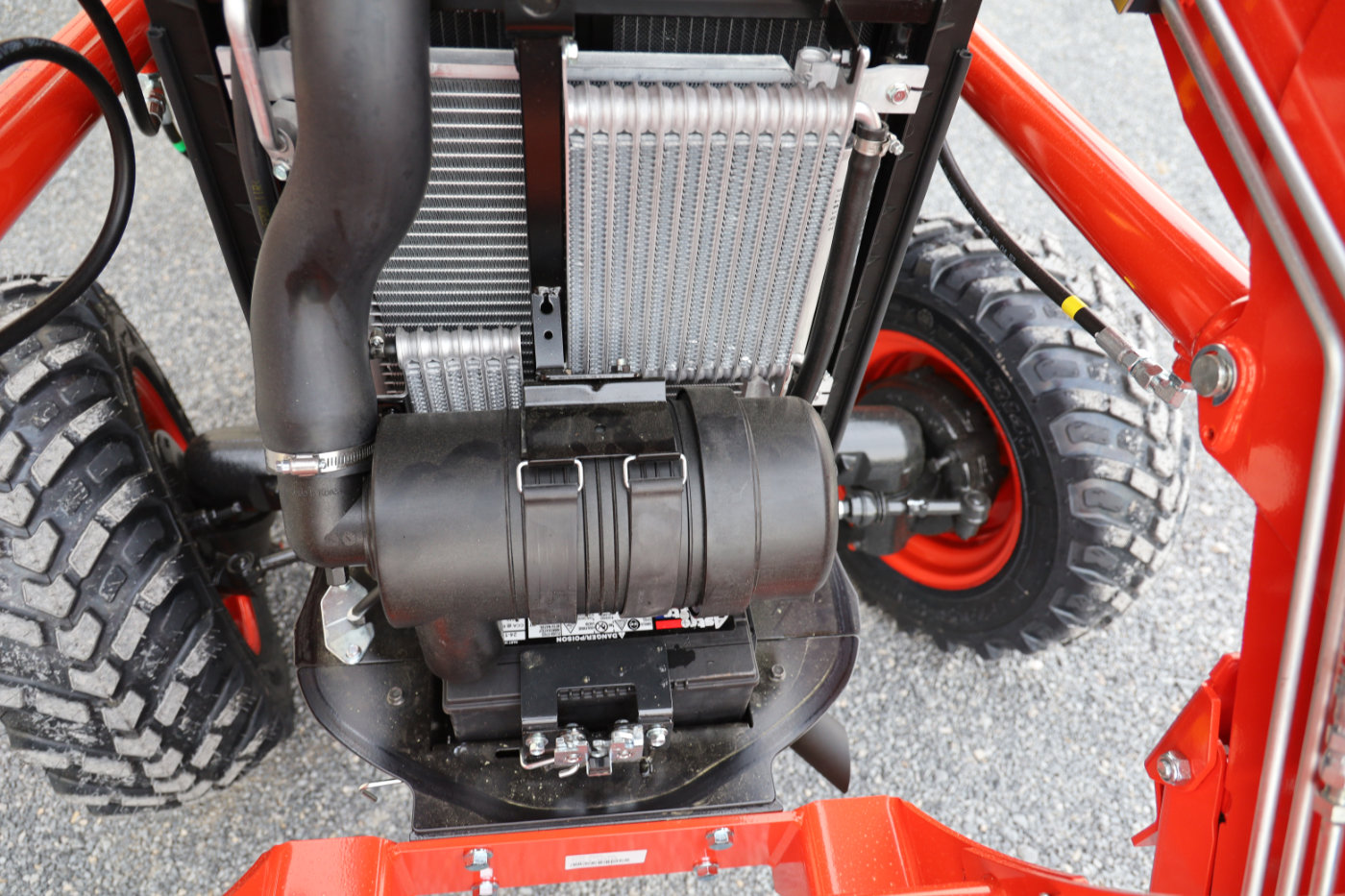

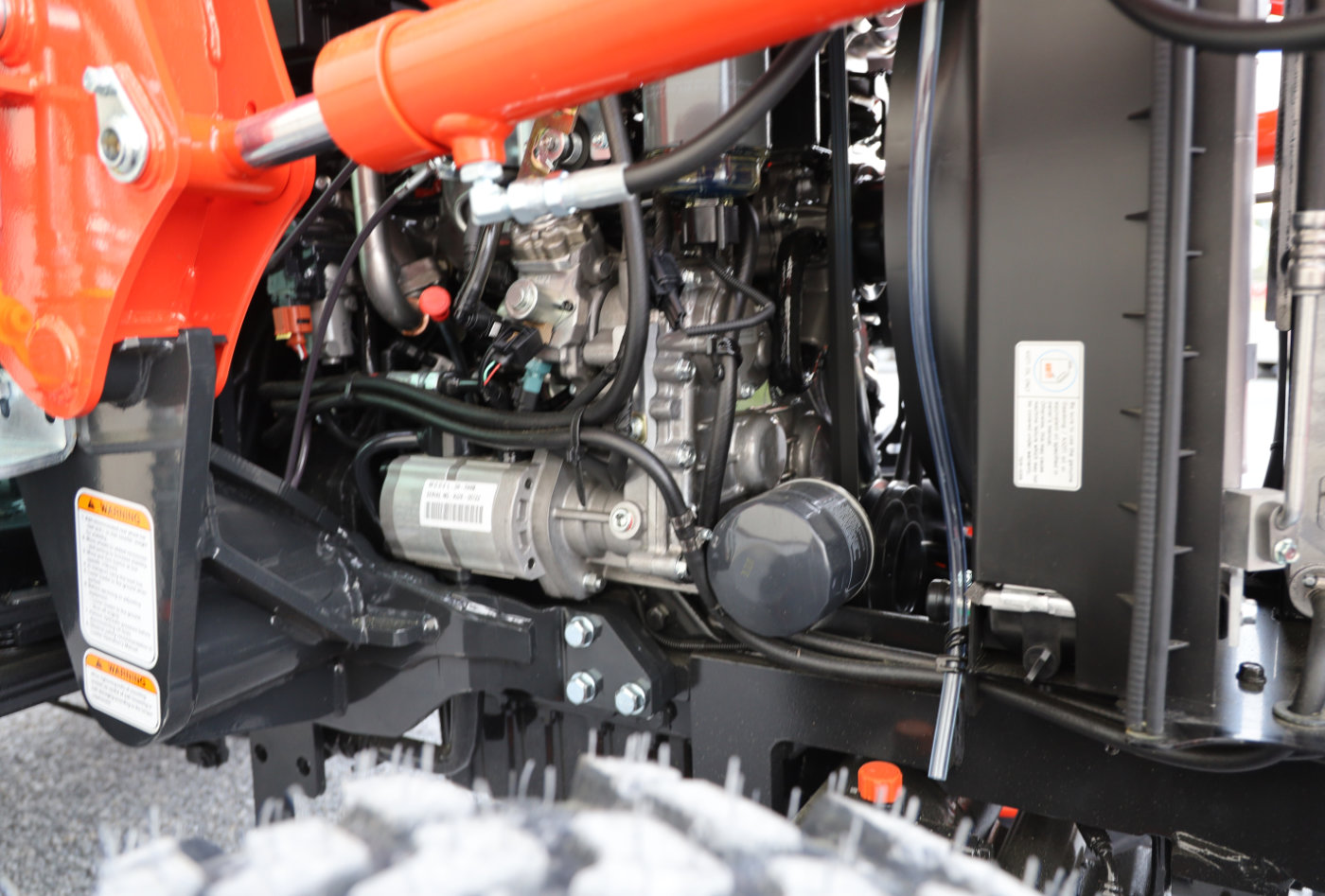

- Simple Maintenance: KIOTI tractors are designed for easy maintenance. Liftable hoods allow convenient access for daily service checks. Maintaining your tractor for long life and high performance has never been easier.
- Center Marker: The center ridge marker on the hood assists with maintaining straight lines during operation.

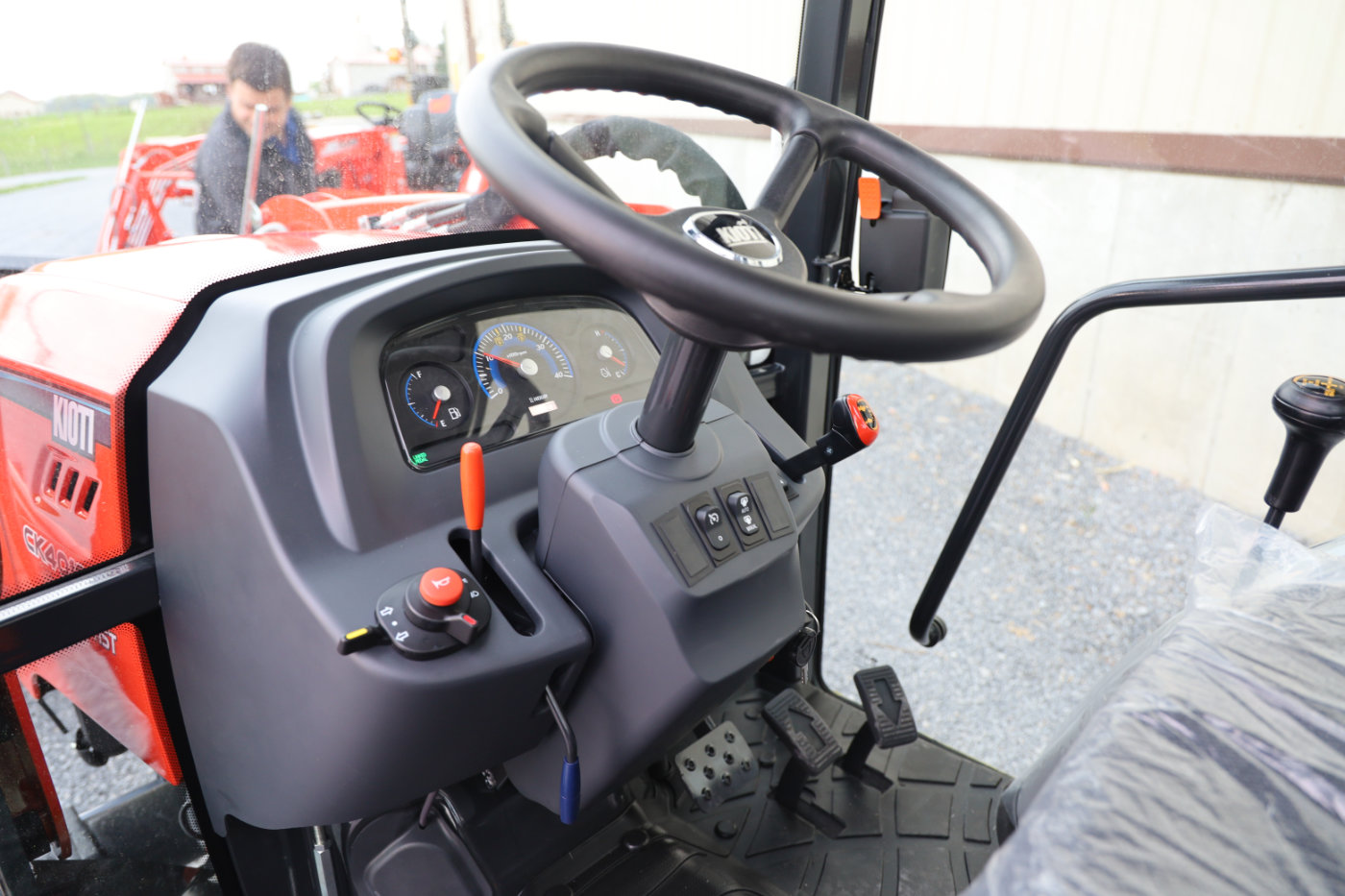

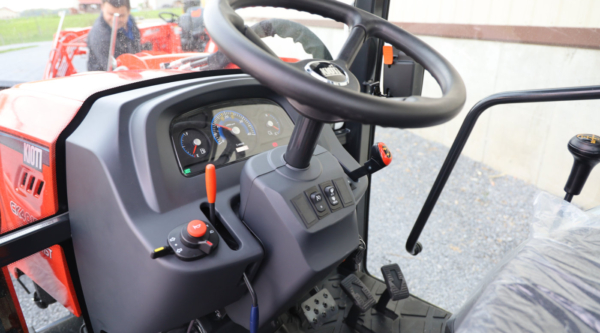

- Illuminated Dashboard: The illuminated dashboard ensures great visibility while working in bright daylight or at night.
- High Ground Clearance: The minimum ground clearance of 13.4 in. provides sufficient clearance for use on rocky or uneven terrain.

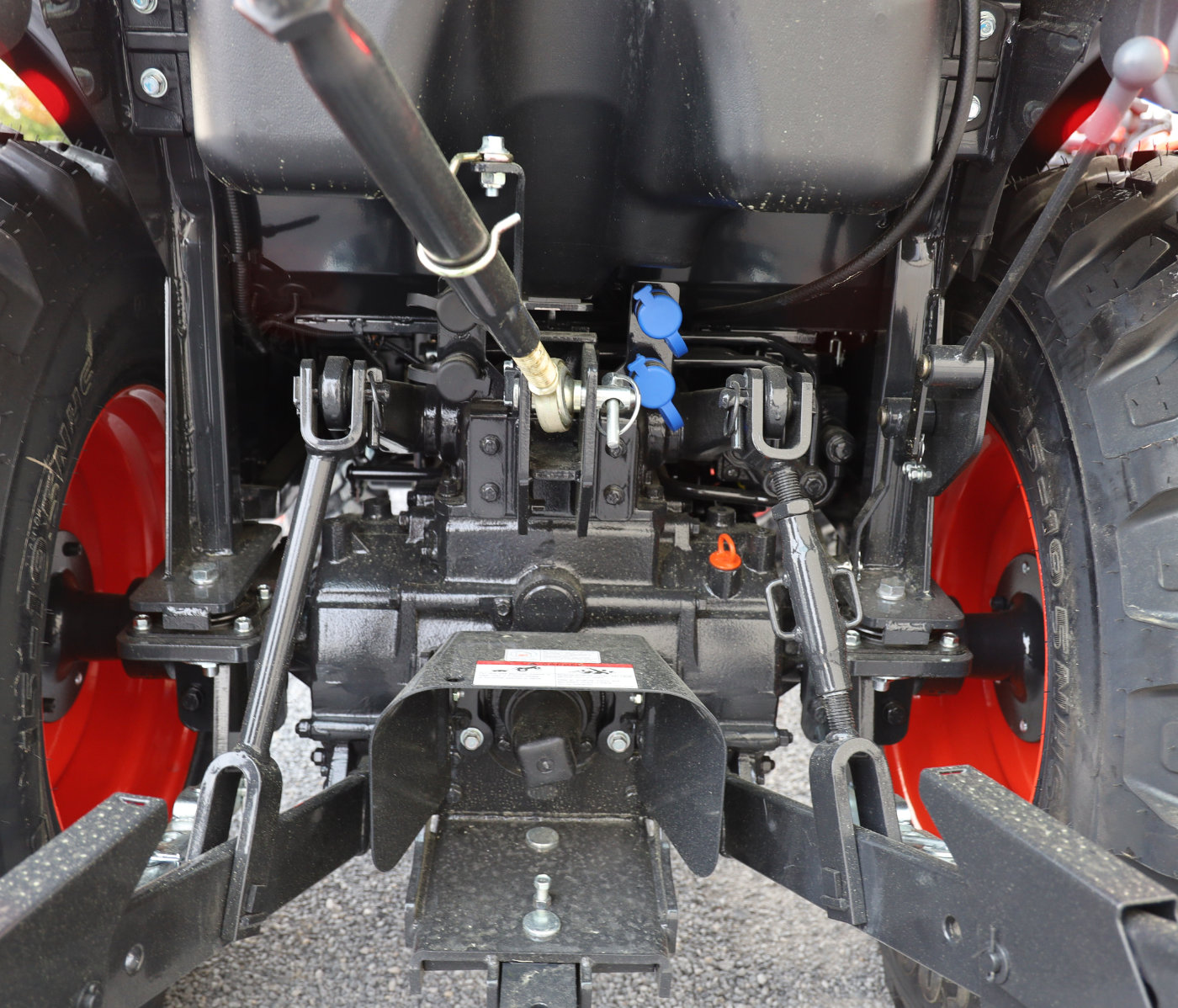

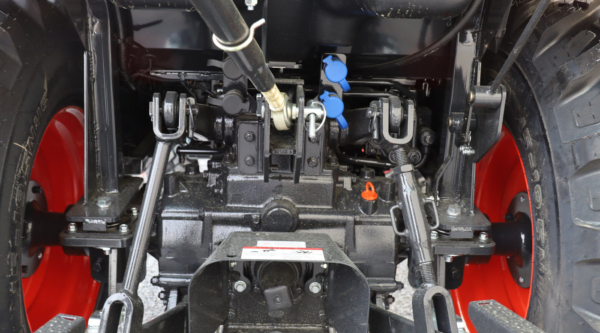

- 3-Point Control Lever: The ergonomic 3-point control lever allows you to easily raise and lower the lift arms when attaching implements. The smooth motion reduces effort and improves control.

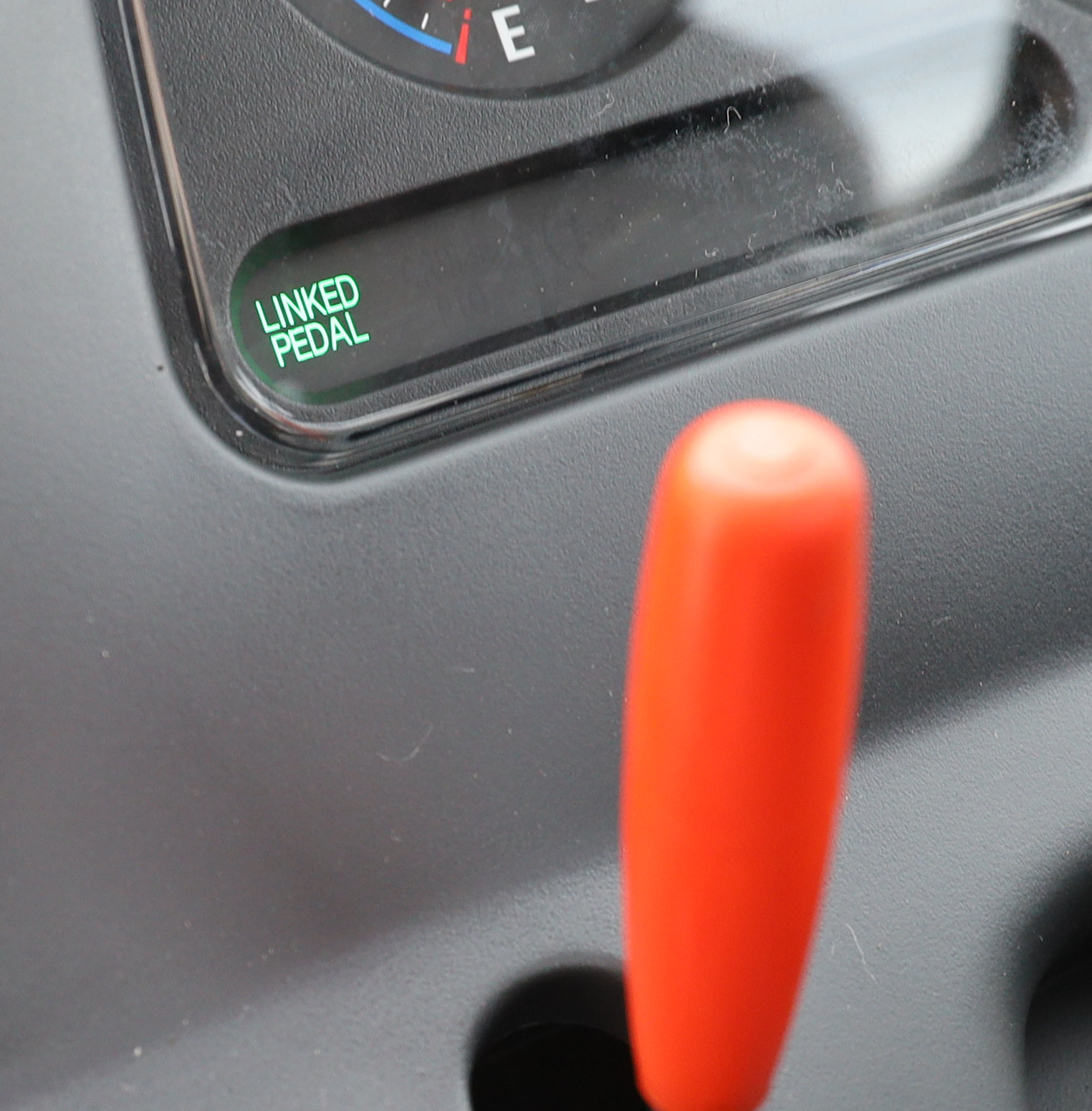

- Powerful HST Transmission: This model features a performance proven, heavy-duty HST drive that delivers power and efficiency. The three range transmission (Hi/Mid/Low) with twin pedal operation makes your job easier, smoother and safer.
Engine
- Engine Model: 3F-TH4-U
- Engine Gross Power: 39.6 hp (29.5 kW)
- Rated Speed: 2,600 rpm
- No. of Cylinders: 3
- Fuel Type: Diesel
- Displacement: 111.4 cu. in. (1,826 cc)

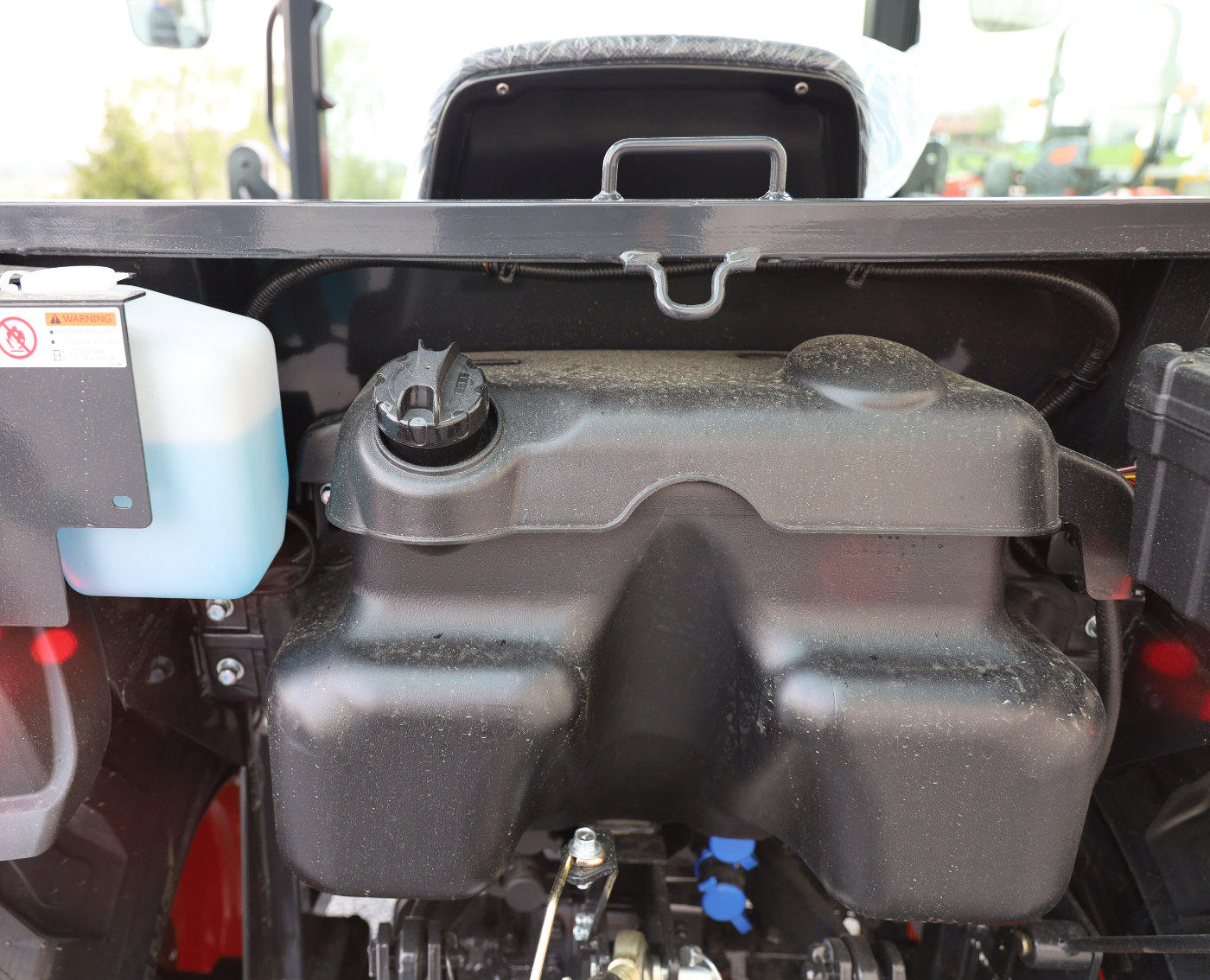

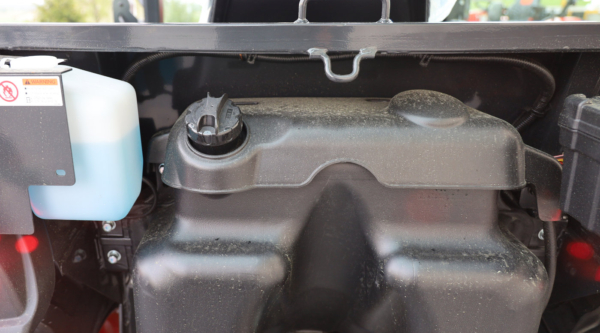

- Fuel Tank Capacity: 9 gal. (34 L)
Transmission
- Transmission Type: HST
- No. of Travel Speeds – Forward / Reverse: 3 Range
- Min. Travel Speed of Forward w/ Ag @ Engine rated speed: 0 mph (0 km/h)
- Max. Travel Speed of Forward w/ Ag @ Engine rated speed: 15.4 mph (24.7 km/h)
Power Take-Off (PTO)
- PTO Type Transmission: Live (SN: TX0600232 and before) / Independent (SN: THH300001 and after)
- PTO Power: 33.3 hp (24.8 kW)
- Rear PTO Speeds (1st): 540 rpm
- Mid PTO Speeds: 2,000 rpm (Optional)
Brakes and Clutch
- Brakes: Wet Multi Disc
