Main Features
- Engine Gross Power: 24.5 hp (18.3 kW)
- PTO Type: Independent
- Transmission Type: HST
- Diesel engine with Daedong ECO Technology
- Power Steering
- Single Lever Joystick
Features
- Diesel engine with Daedong ECO Technology: The 24.5 hp (18.3 kW) ECO-friendly diesel engine provides powerful performance and improves fuel efficiency while reducing noise levels.
- Power Steering: Responsive, powerful and comfortable steering reduces operator fatigue. The power steering system is robustly designed for maneuvering in soft soil and for front loader operation.

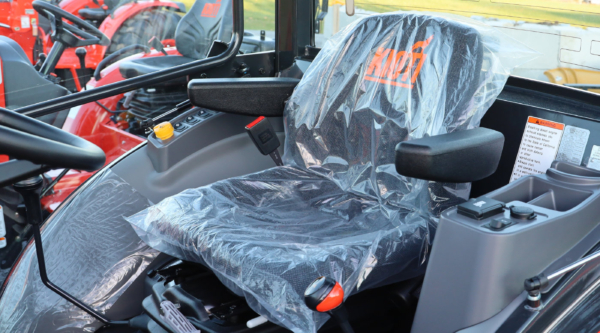

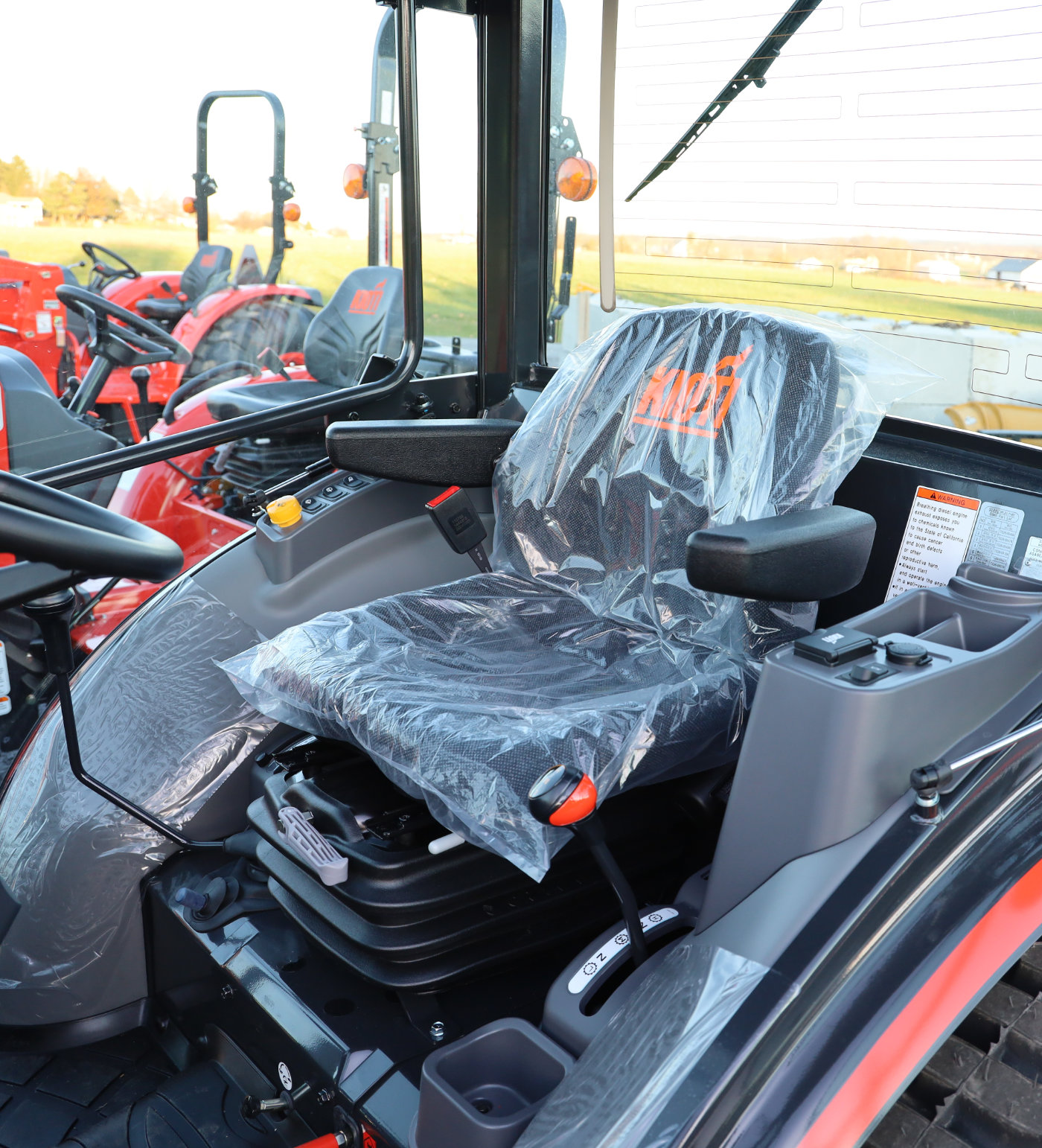

- Deluxe Suspension Seat: No matter what the task may be, the adjustable suspension seat with dual armrests allows the operator to ride in comfort.
- Rear PTO: Rear PTO is standard and mid PTO is optional.

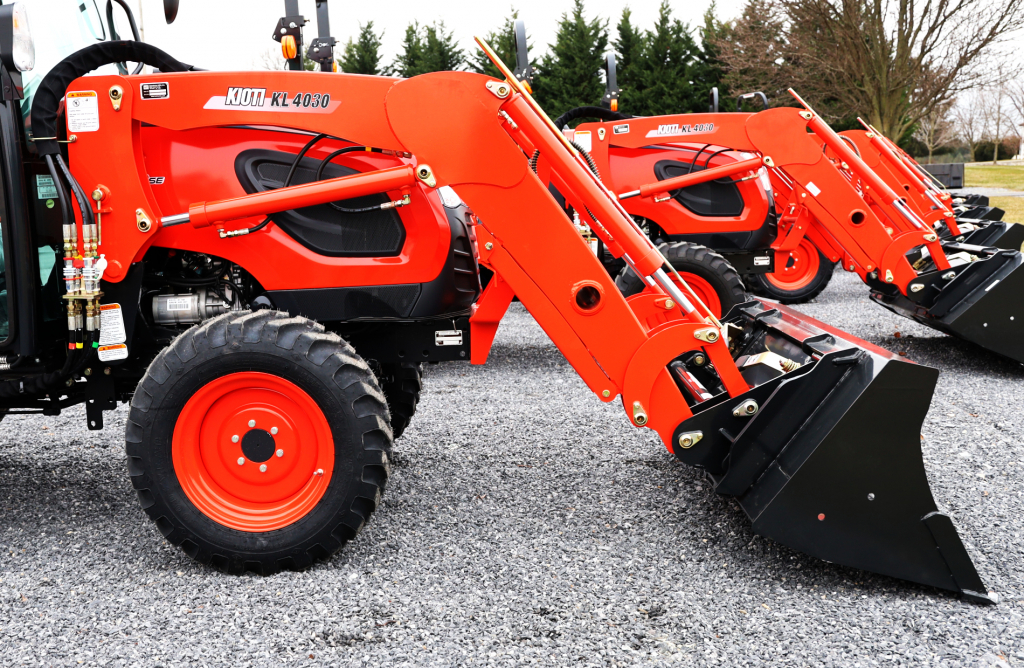

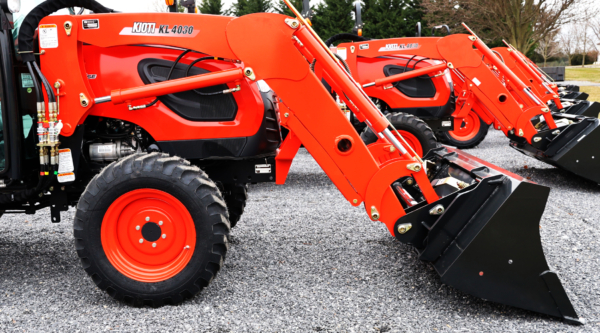

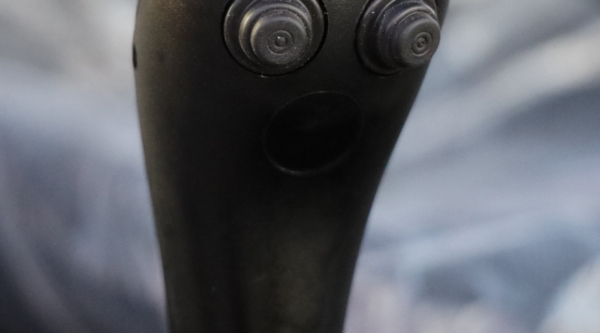

- Single Lever Joystick: Front end loader work is made easier by the use of a single lever joystick. The lever returns to neutral when released. A float position allows the bucket free flotation over the ground surface.
- Simple Maintenance: KIOTI tractors are designed for easy maintenance. Liftable hoods allow convenient access for daily service checks. Maintaining your tractor for long life and high performance has never been easier.
- Center Marker: The center ridge marker on the hood assists with maintaining straight lines during operation.
- High Ground Clearance: The minimum ground clearance of 13.4 in. provides sufficient clearance for use on rocky or uneven terrain.
- Illuminated Dashboard: The illuminated dashboard ensures great visibility while working in bright daylight or at night.
- 3-Point Control Lever: The ergonomic 3-point control lever allows you to easily raise and lower the lift arms when attaching implements. The smooth motion reduces effort and improves control.
Engine
- Engine Model: 3H-TM4B
- Engine Gross Power: 24.5 hp (18.3 kW)
- Rated Speed: 2,600 rpm
- No. of Cylinders: 3
- Fuel Type: Diesel
- Displacement: 100.5 cu. in. (1,647 cc)
- Fuel Tank Capacity: 9 gal. (34 L)
Transmission
- Transmission Type: Hydrostatic
- No. of Travel Speeds – Forward / Reverse: 3 range
- Min. Travel Speed of Forward w/ Ag @ Engine rated speed: 0 mph (0 km/h)
- Max. Travel Speed of Forward w/ Ag @ Engine rated speed: 17.45 mph (28.1 km/h)
Power Take-Off (PTO)
- PTO Type Transmission: Independent
- PTO Power: 18.6 hp (13.8 kW)
- Rear PTO Speed: 540 rpm
- Mid PTO Speed: 2,000 rpm (Optional)
Brakes and Clutch
- Brakes: Wet Disc Type
Dimensions w/ AG Tire
- Length w/ 3-point hitch: 120.9 in. (3,070 mm)
- Width: 54.5 in. (1,385 mm)
- Height from Top of ROPs: 99.2 in. (2,520 mm)
- Wheelbase: 65.7 in. (1,670 mm)
- Ground Clearance: 13.4 in. (340 mm)
- Front Tread Ag Tires – Min: 48.2 in. (1,225 mm)
- Rear Tread Ag Tires – Min: 47.6 in. (1,210 mm)
- Min. Turning Radius w/ Brake: 8.0 ft. (2.4 m)
Hydraulics
- Total Pump Flow: 11.3 gpm (42.9 L/min)

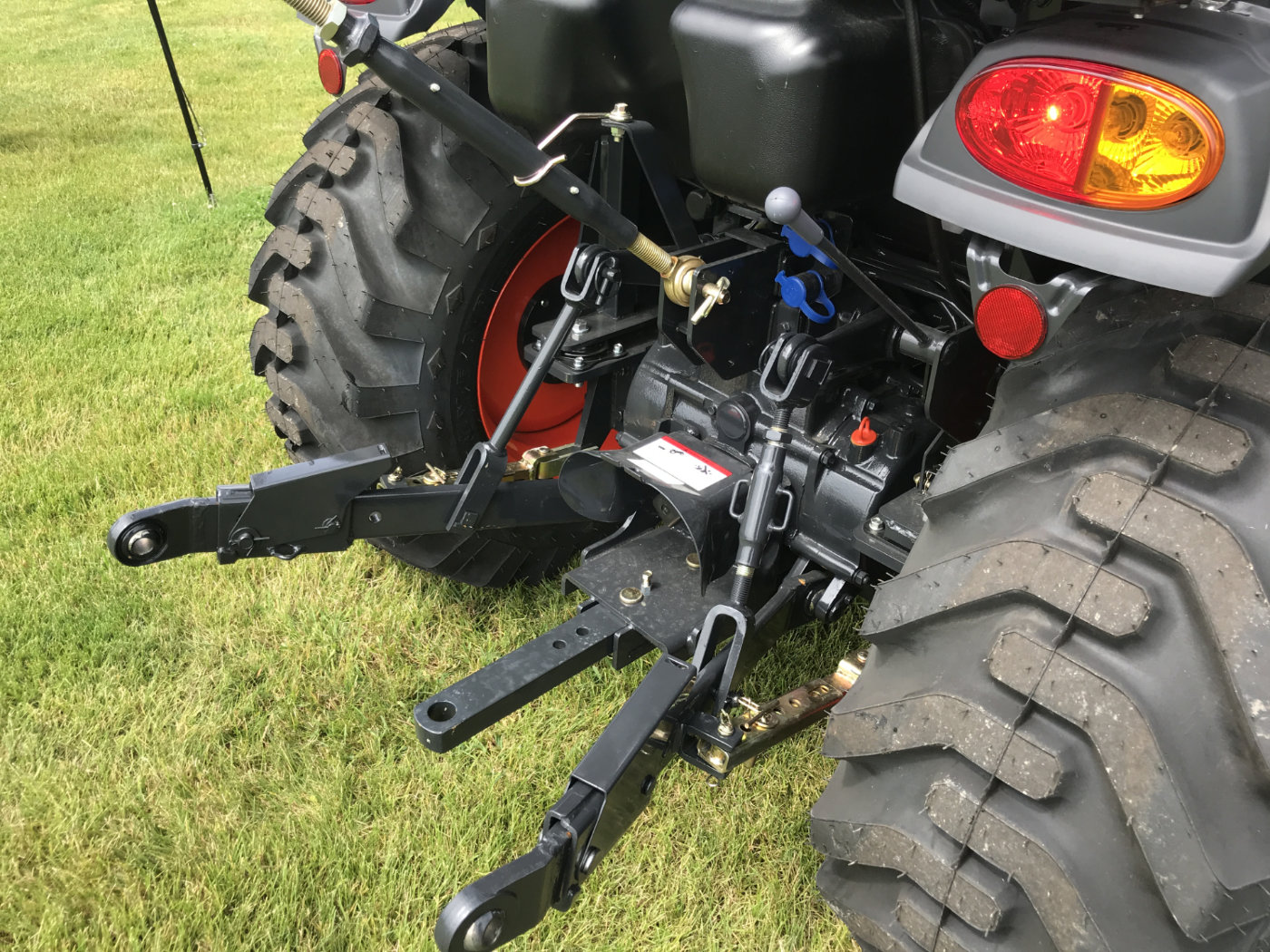

3-Point Hitch
- Standard Category: Category 1
- Lift Capacity, 24″ aft of hitch: 1,631 lb. (740 kg)
Weight
- Weight w/ Ag Tires w/ ROPs: 3,397 lb. (1,541 kg)
Standard Equipment
- Headlights
- Signal Lamp
- Parking Brake
- Hydrostatic Power Steering
- Wet Multi Disc Brakes
- Single Lever Joystick
- Rear PTO
- Flip Up PTO Cover
- Illuminated Dashboard
- Cup Holder
- Tilt Steering
- Horn
- Dual Armrest

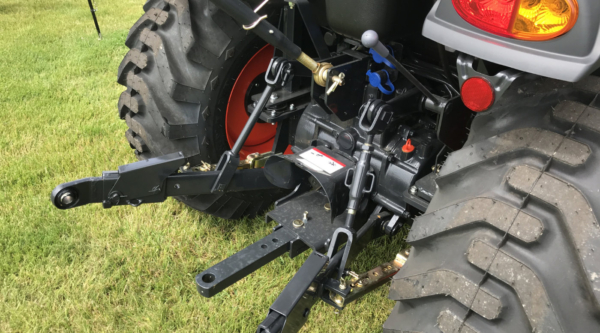

- Telescopic Lower Link
- Telescopic Stabilizers
- Side View Mirror
- Toolbox
- Floormat
- Dual Air Cleaner Element

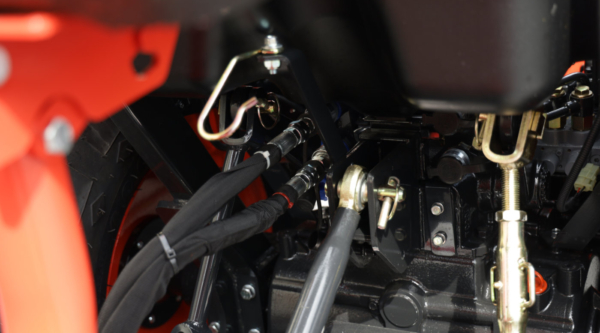

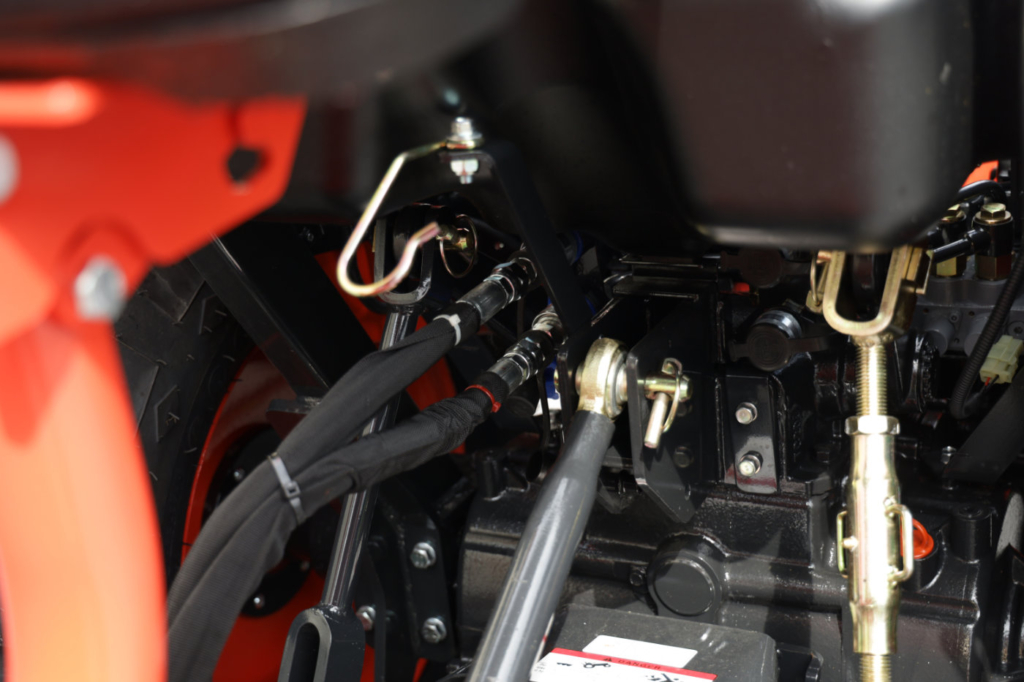

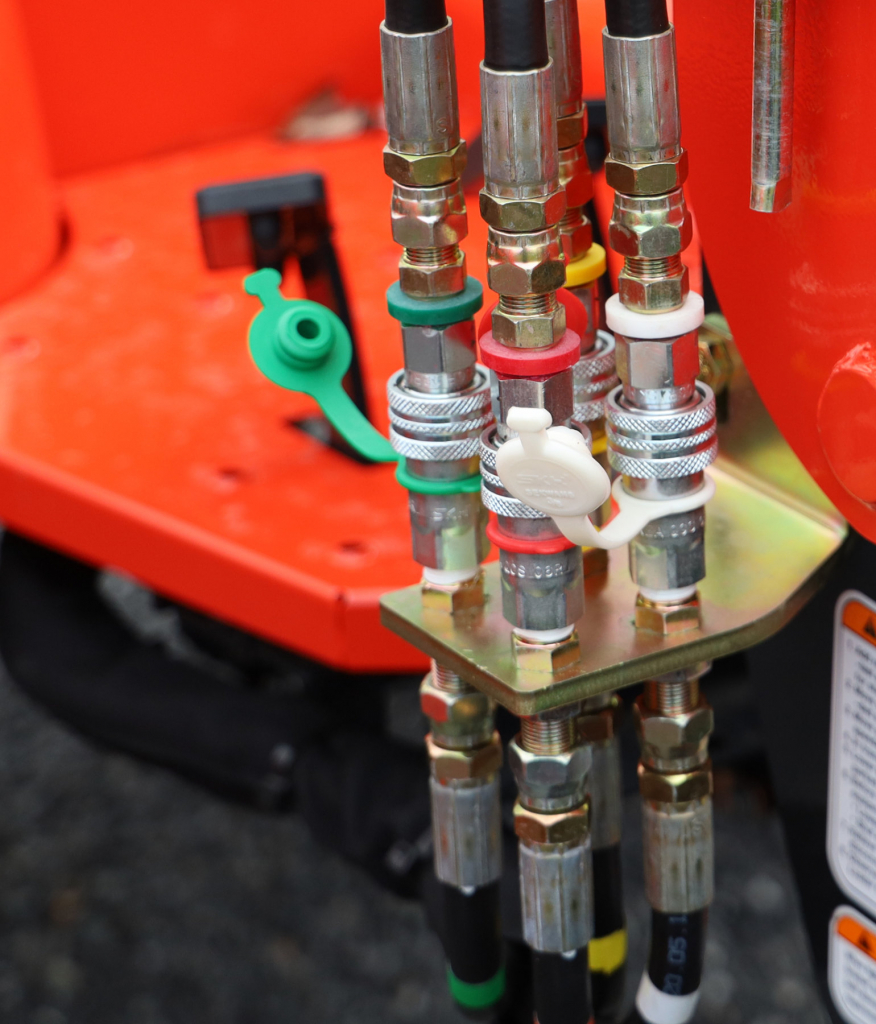

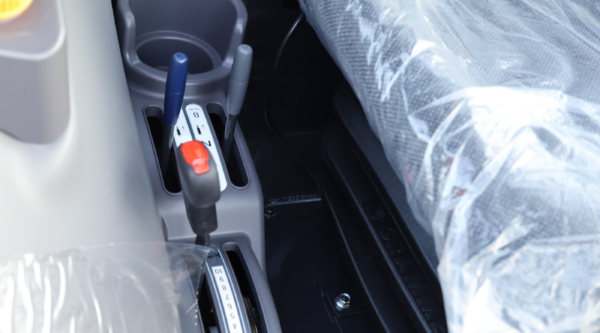

- Dual Remote Hydraulic Valves (4 Port) (Spring/Detent)
Optional Equipment
- Mid PTO
- Front Weights
- Clevis Type Drawbar
- Fuel Heater
- RH Leveling Box
- Beacon Lamp Wire Kit
- Detent Holder Kit
- Rear Working Kit (Ag Tires Only)
- Rear Working Light
- Sun Canopy
- Field Options Cab
- Lift Rod Kit
Instrument Panel
- Digital Hour Meter
- Coolant Temperature Gauge
- Tachometer
- Fuel Gauge
- Engine Oil Pressure Light
- High Beam, Emergency Flasher, Turn Signals
- Glow Plug Light
- Alternator Light

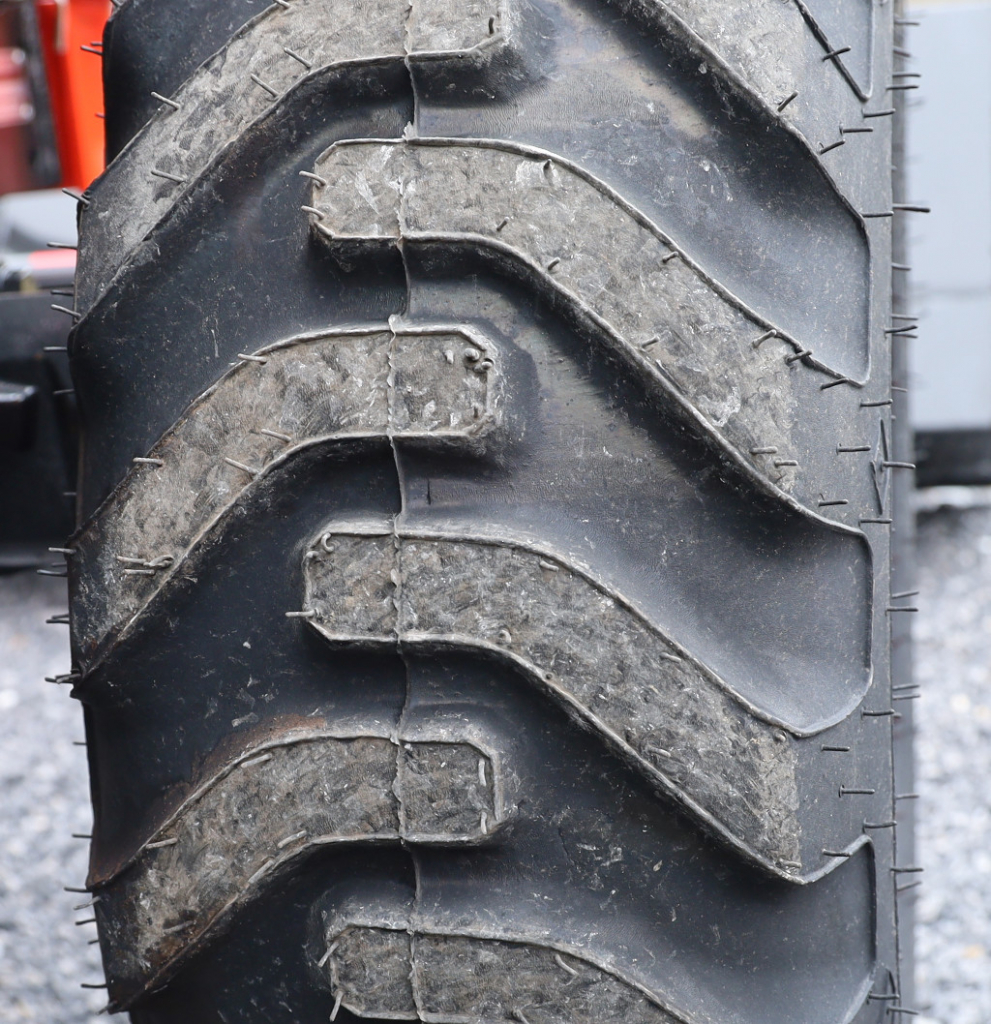

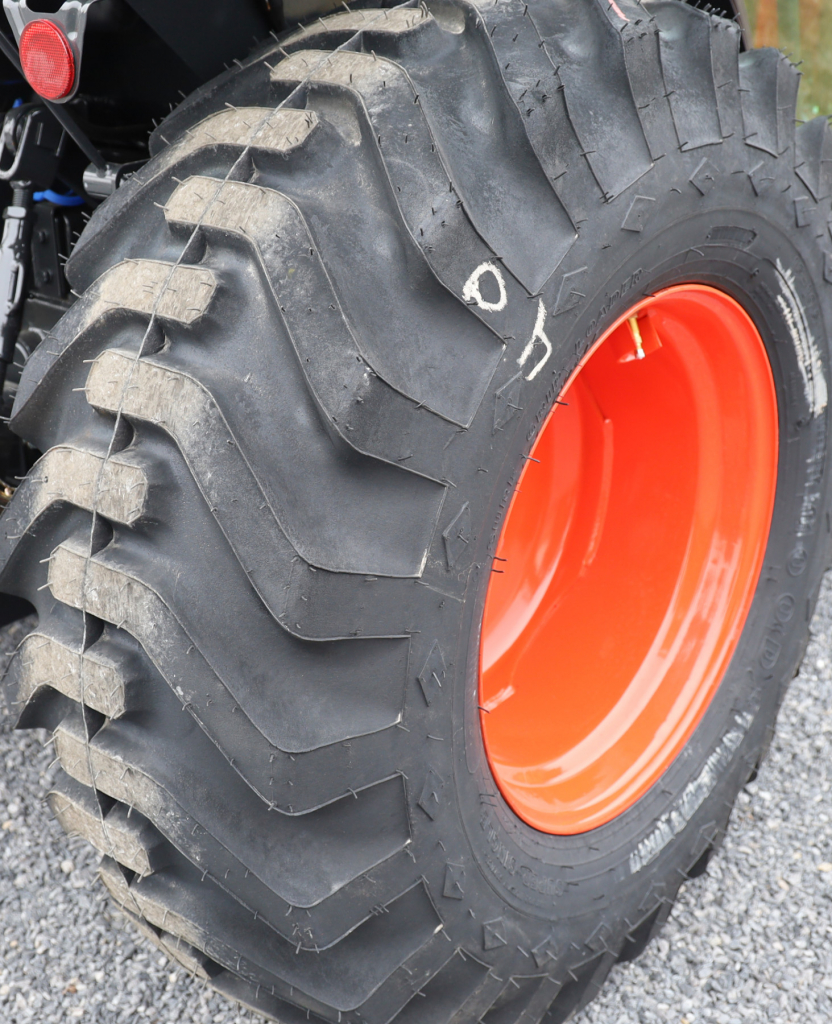

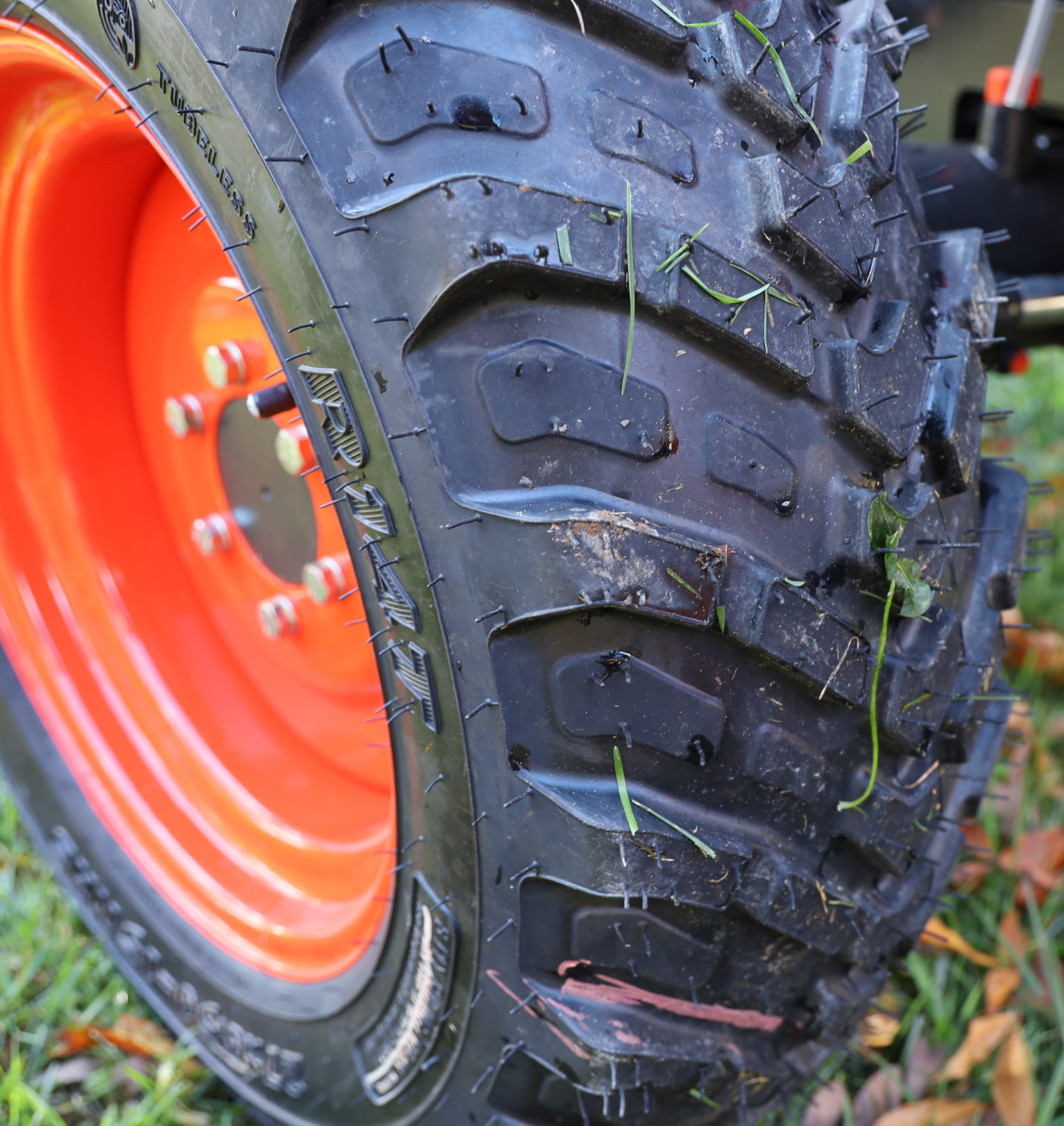

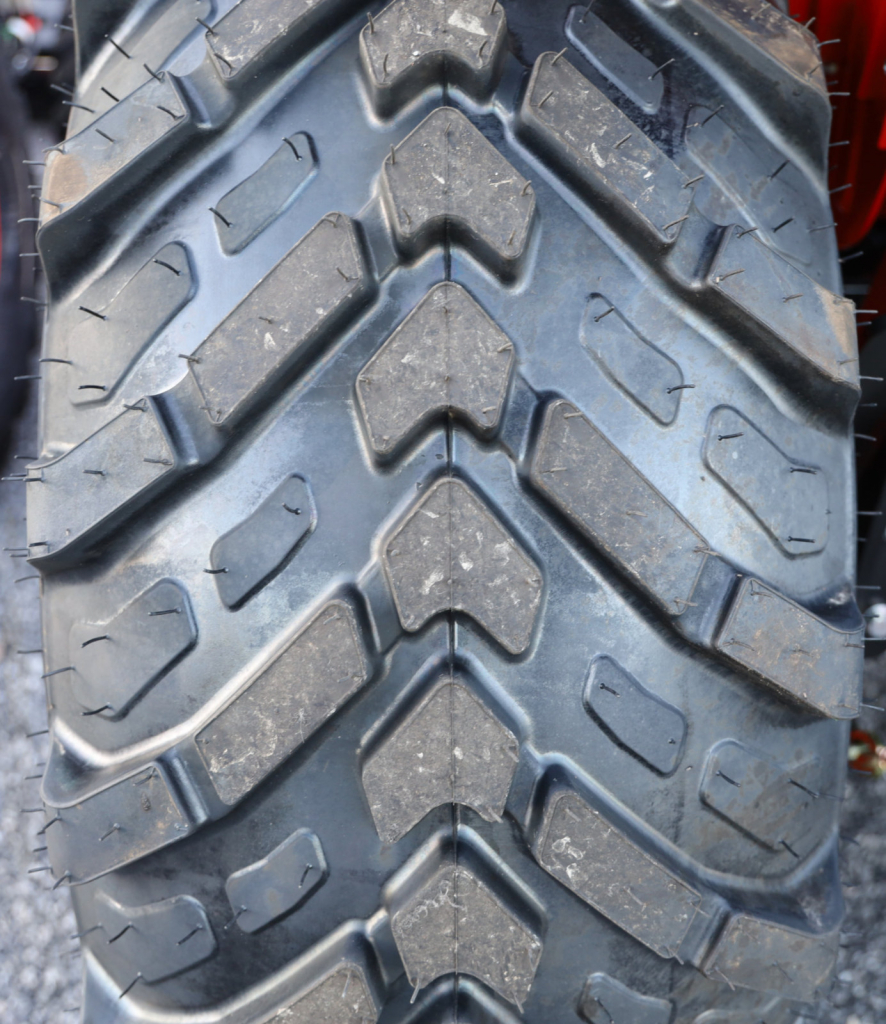

Available Tires
- Agriculture: Front: 7-16; Rear: 11.2-24
- Turf: Front: 25×8.5-15; Rear : 41×14-20

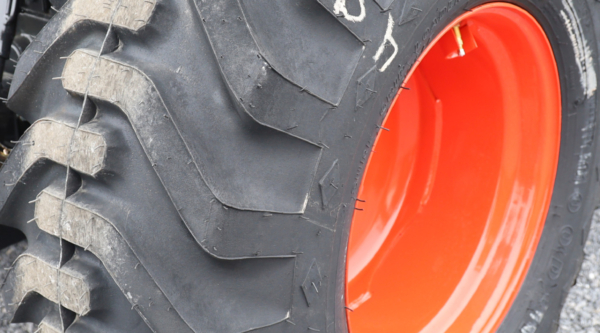

- Industrial: Front : 27X8.5-15; Rear: 15-19.5
