Main Features

• Engine Gross Power: 39.6 hp (29.5 kW)
• PTO Type: Independent
• Transmission Type: Hydrostatic
• Diesel engine with Daedong ECO Technology

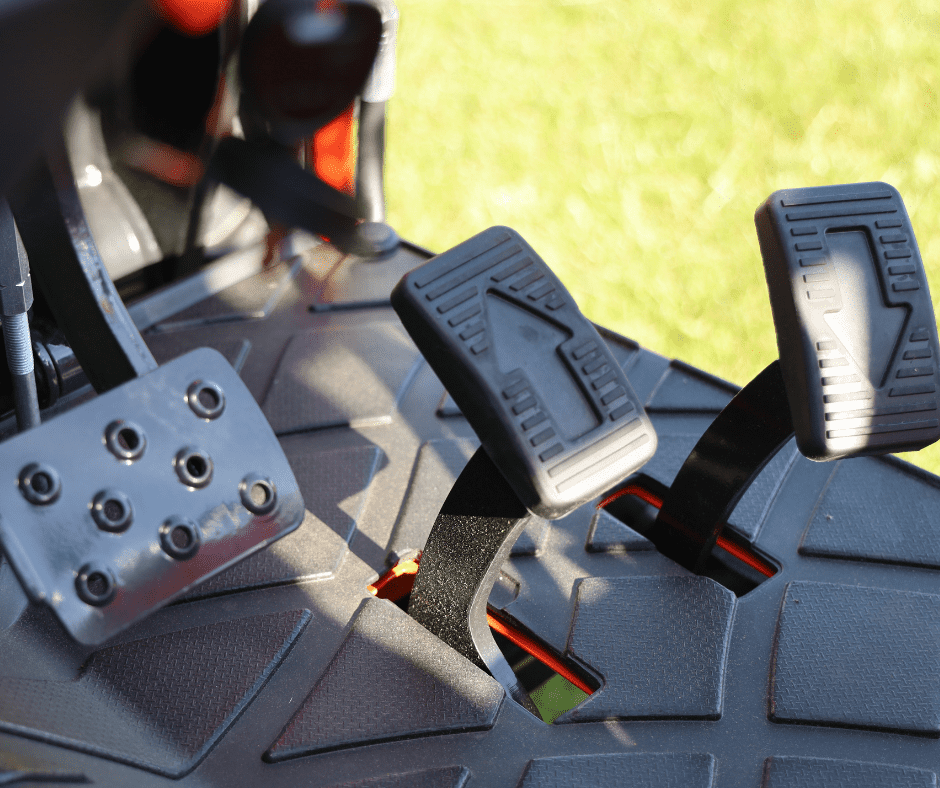

• Dual Pedal HST
• Power Steering
• Single Lever Joystick

Features

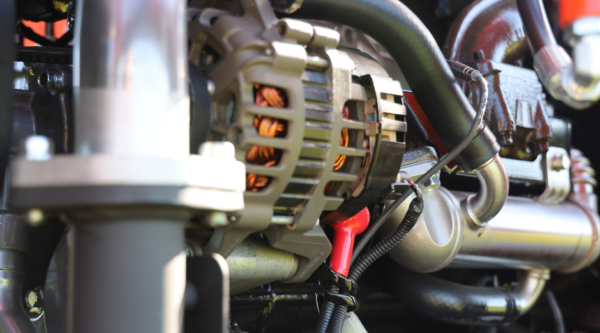

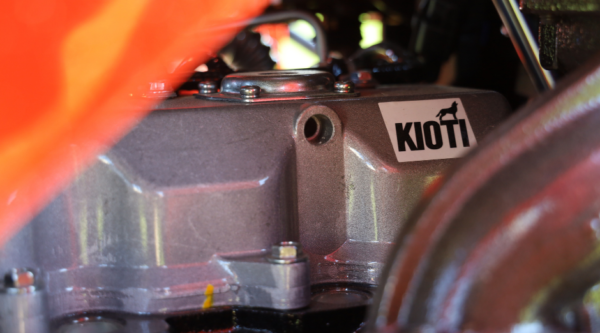

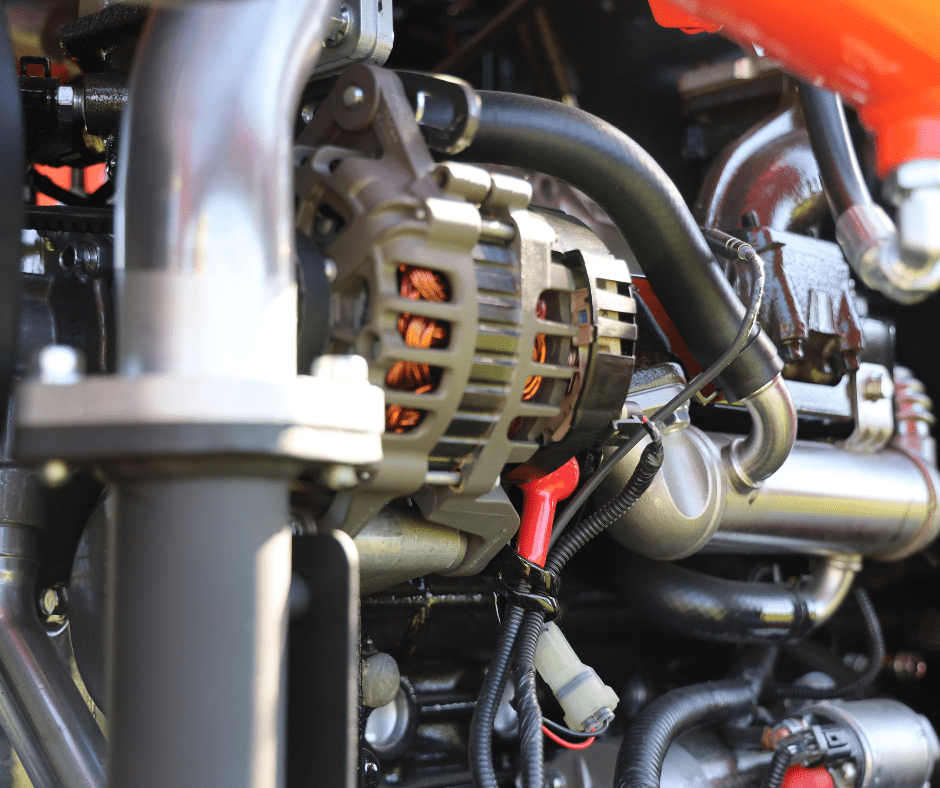

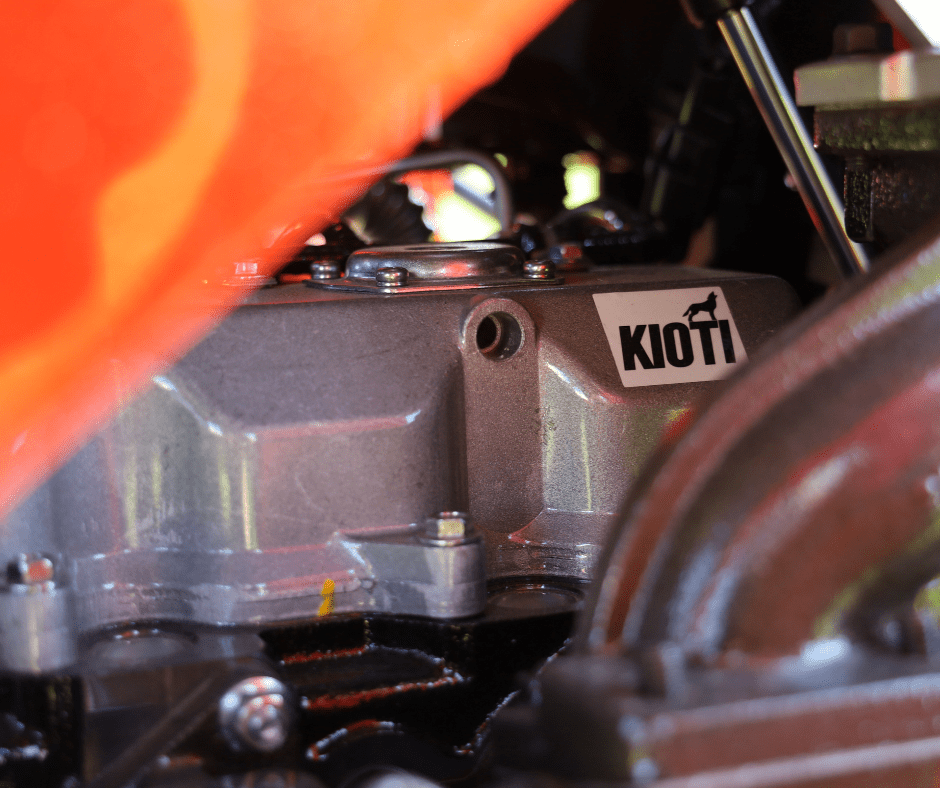

• Diesel engine with Daedong ECO Technology: The new 39.6 hp (29.5 kW) ECO-friendly diesel engine provides powerful performance and improves fuel efficiency while reducing noise levels.

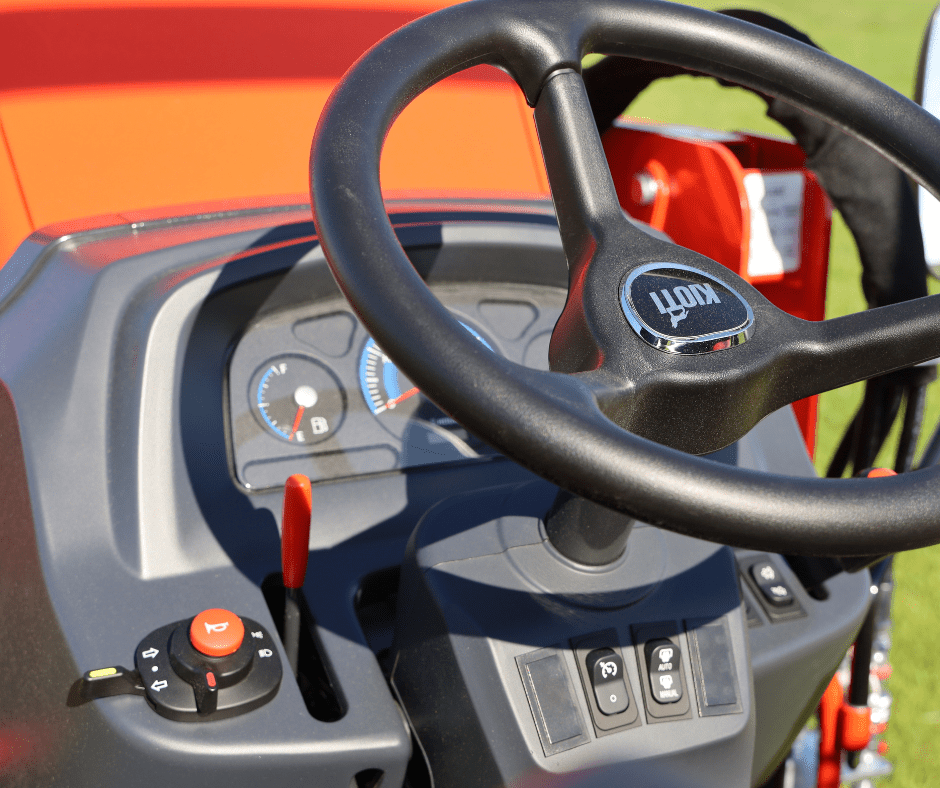

• Power Steering: Responsive, powerful and comfortable steering reduces operator fatigue. The power steering system is robustly designed for maneuvering in soft soil and for front loader operation.

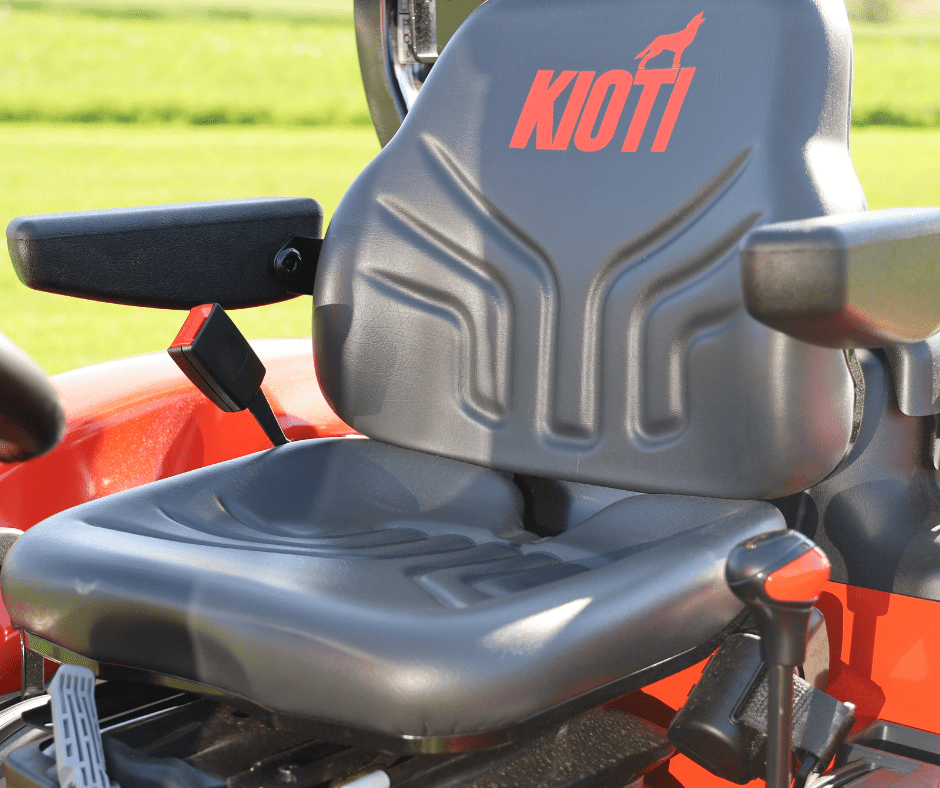

• Deluxe Suspension Seat: No matter what the task may be, the adjustable suspension seat with dual armrests allows the operator to ride in comfort.
• Rear PTO: Rear PTO is standard and mid PTO is optional.

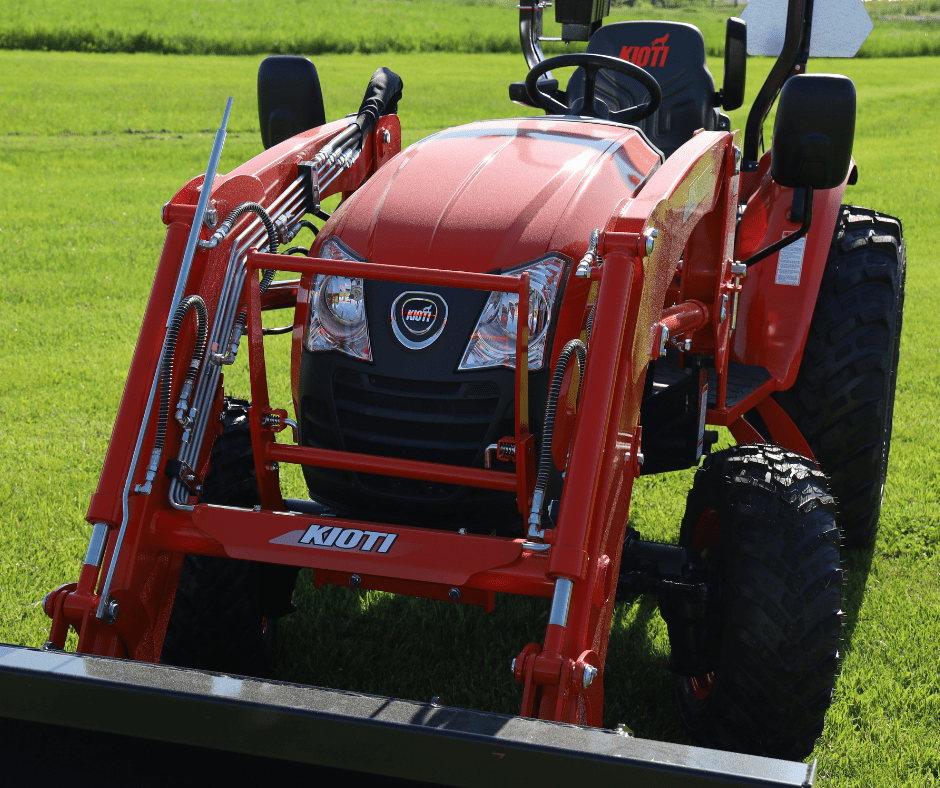

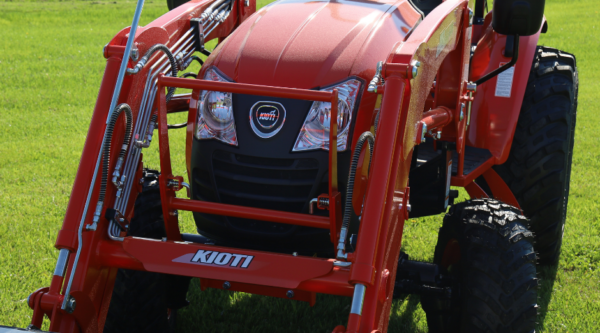

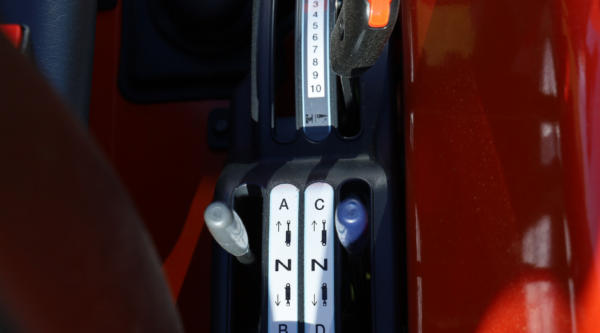

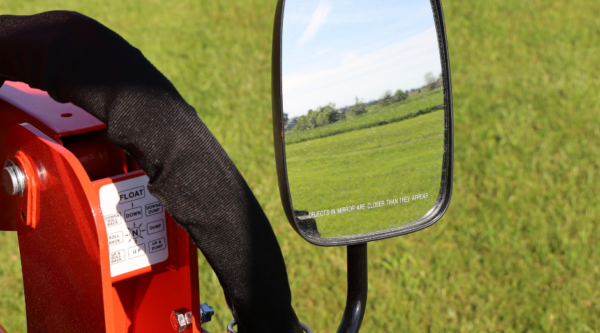

• Single Lever Joystick: Front end loader work is made easier by the use of a single lever joystick. The lever returns to neutral when released. A float position allows the bucket free flotation over the ground surface.

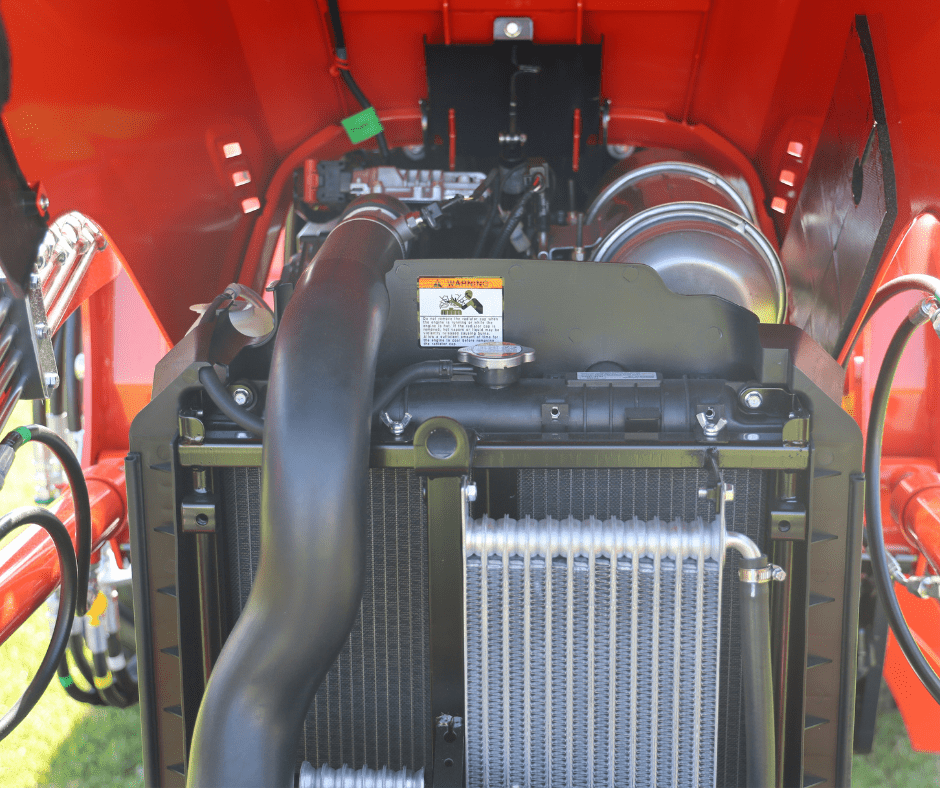

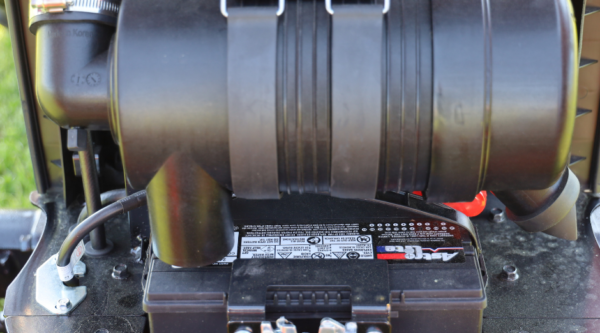

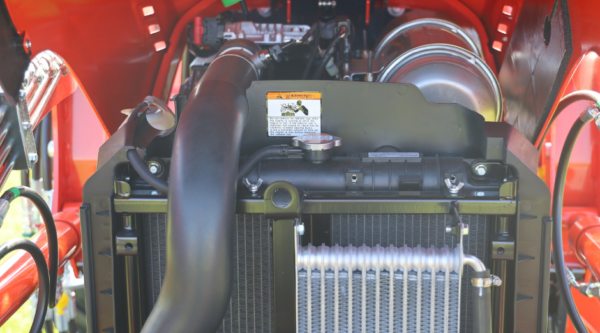

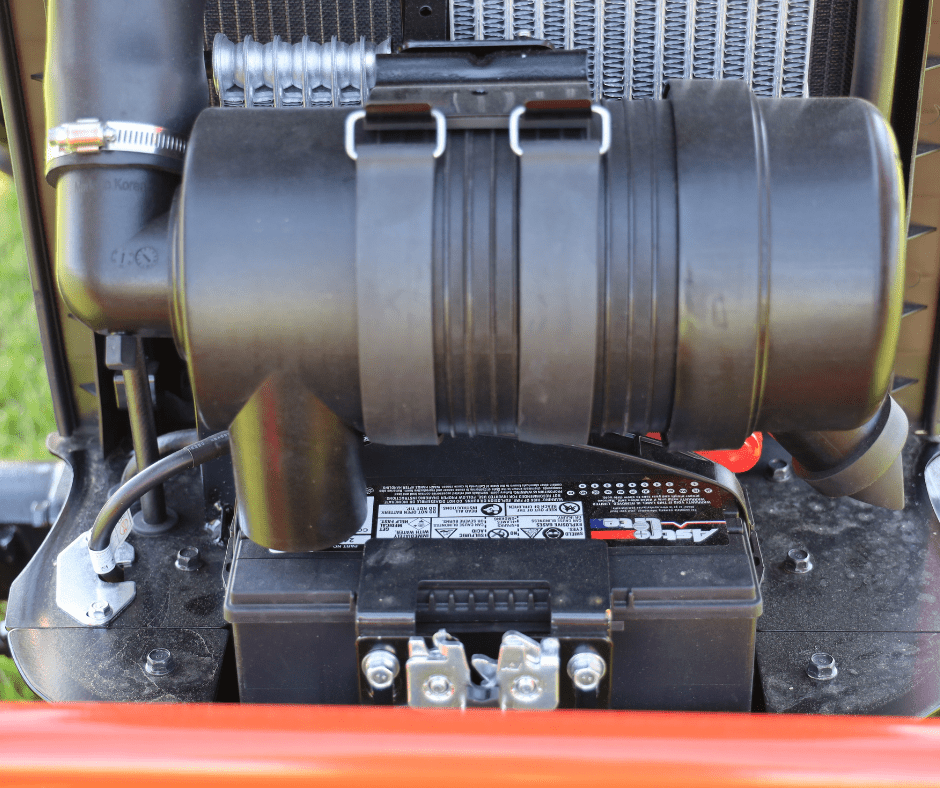

• Simple Maintenance: KIOTI tractors are designed for easy maintenance. Liftable hoods allow convenient access for daily service checks. Maintaining your tractor for long life and high performance has never been easier.
• Center Marker: The center ridge marker on the hood assists with maintaining straight lines during operation.
• High Ground Clearance: The minimum ground clearance of 13.4 in. provides sufficient clearance for use on rocky or uneven terrain.

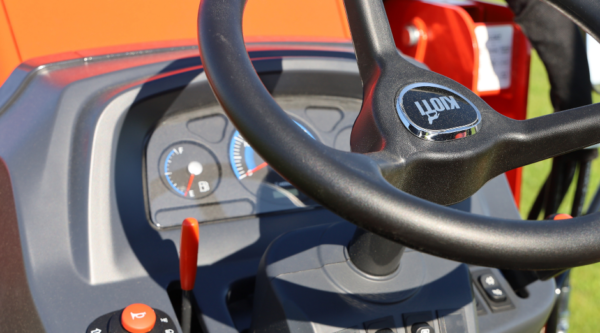

• Illuminated Dashboard: The illuminated dashboard ensures great visibility while working in bright daylight or at night.

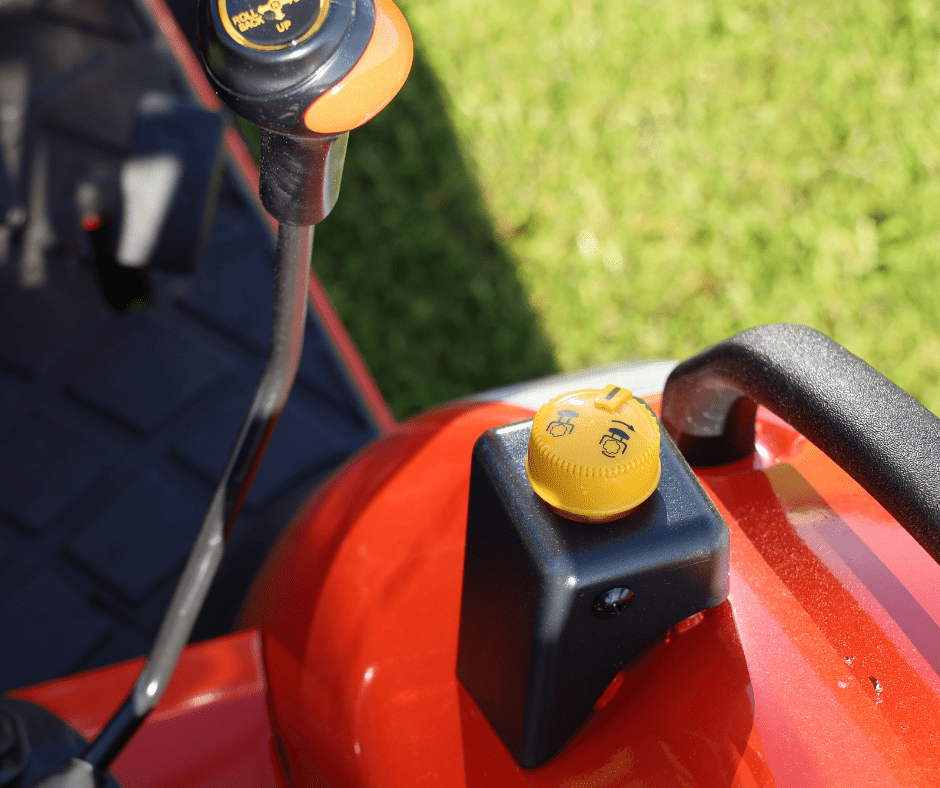

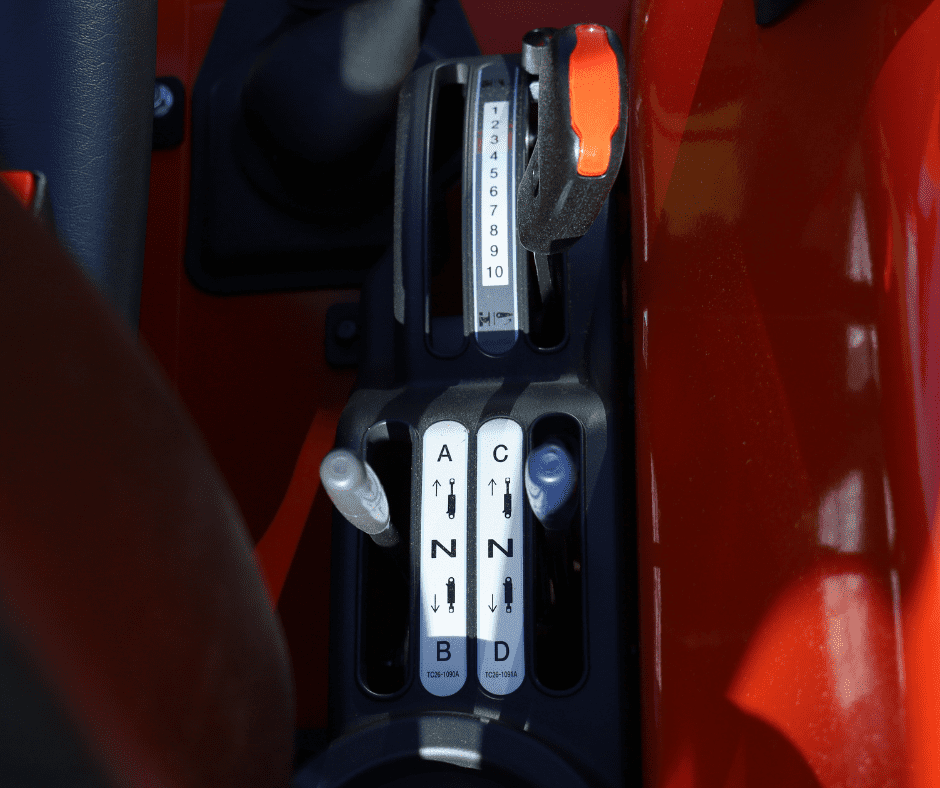

• 3-Point Control Lever: The ergonomic 3-point control lever allows you to easily raise and lower the lift arms when attaching implements. The smooth motion reduces effort and improves control.

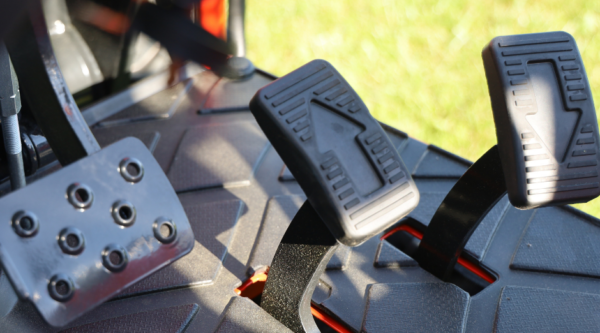

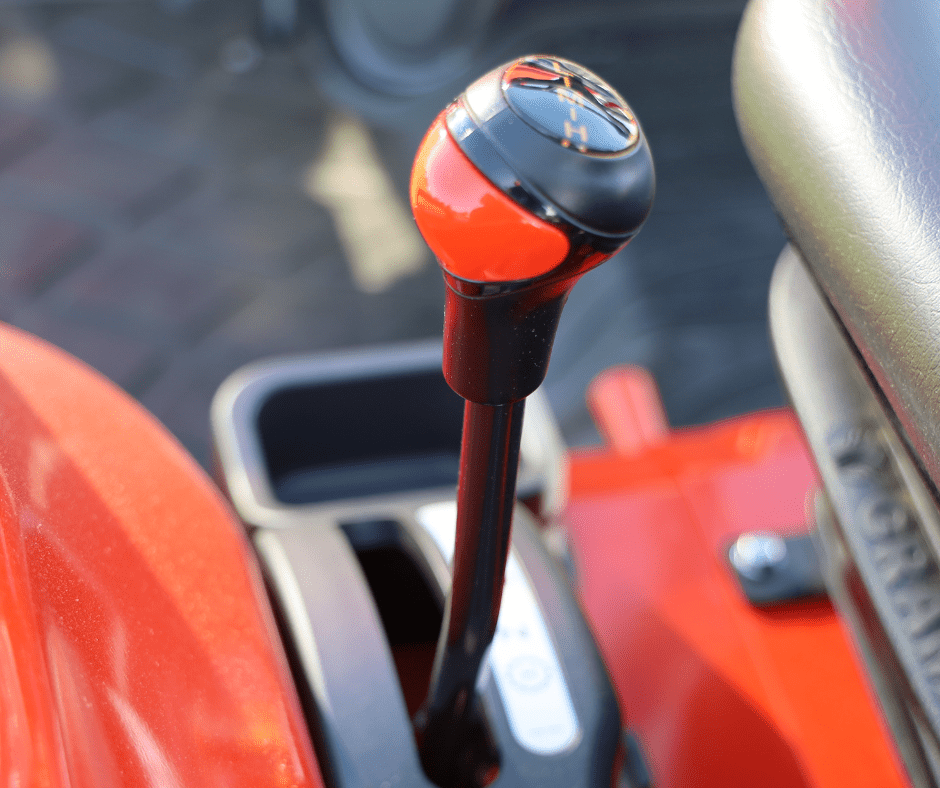

• Powerful HST Transmission: This model features a performance proven, heavy-duty HST drive that delivers power and efficiency. The three range transmission (Hi/Mid/Low) with twin pedal operation makes your job easier, smoother and safer.

Engine

• Engine Model: 3H-TM4B
• Engine Gross Power: 39.6 hp (29.5 kW)
• Rated Speed: 2,600 rpm
• No. of Cylinders: 3
• Fuel Type: Diesel
• Displacement: 111.4 cu. in. (1,826 cc)

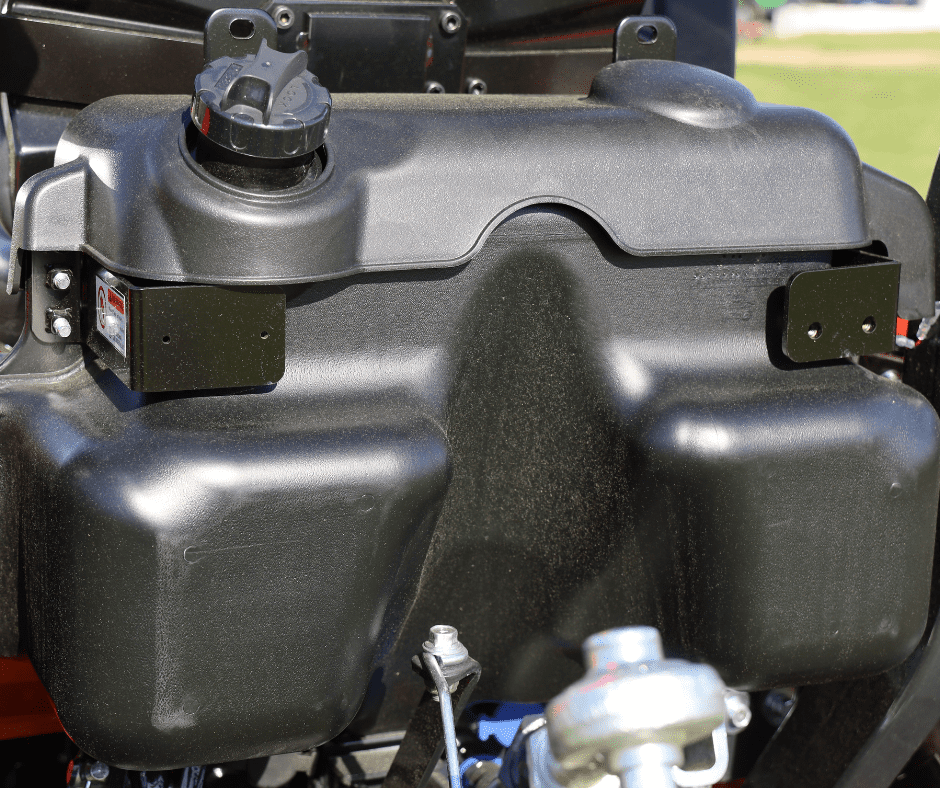

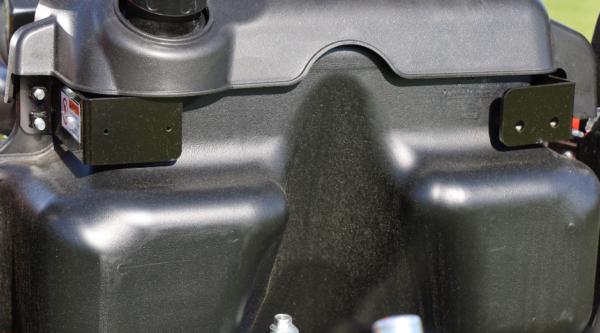

• Fuel Tank Capacity: 9 gal. (34 L)

Transmission

• Transmission Type: Hydrostatic
• No. of Travel Speeds – Forward / Reverse: 3 Range
• Min. Travel Speed of Forward w/ Ag @ Engine rated speed: 0 mph (0 km/h)
• Max. Travel Speed of Forward w/ Ag @ Engine rated speed: 15.4 mph (24.7 km/h)

Power Take-Off (PTO)

• PTO Type Transmission: Independent
• PTO Power: 33.5 hp (25 kW)
• Rear PTO Speeds: 540 rpm
• Mid PTO Speeds: 2,000 rpm (Optional)

Brakes and Clutch

• Brakes: Wet Multi Disc
• Clutch: Dry Single Stage

Dimensions w/ AG Tire

• Length w/ 3-point hitch: 120.9 in. (3,070 mm)
• Width: 54.5 in. (1,385 mm)
• Height from Top of ROPs: 99.2 in. (2,520 mm)
• Wheelbase: 65.7 in. (1,670 mm)
• Ground Clearance: 13.4 in. (340 mm)
• Front Tread Ag Tires – Min: 48.2 in. (1,225 mm)
• Rear Tread Ag Tires – Min: 47.6 in. (1,210 mm)
• Min. Turning Radius w/ Brake: 8 ft. (2.4 m)

Hydraulics

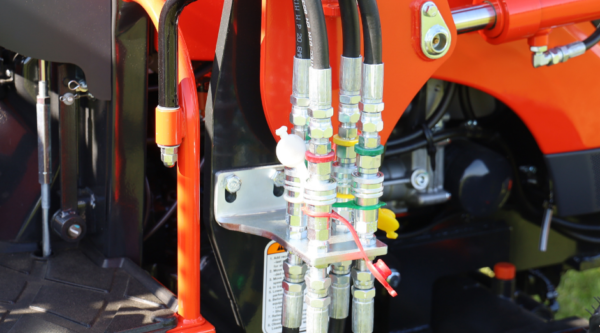

• Total Pump Flow: 11.7 gpm (44.4 L/min)

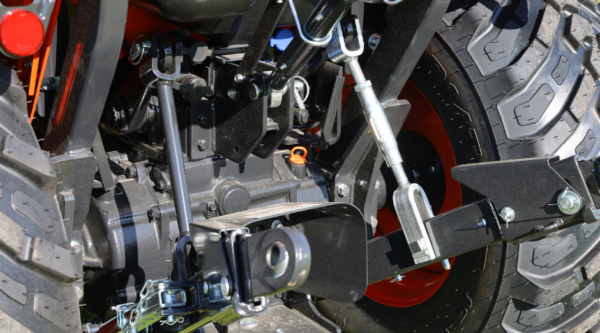

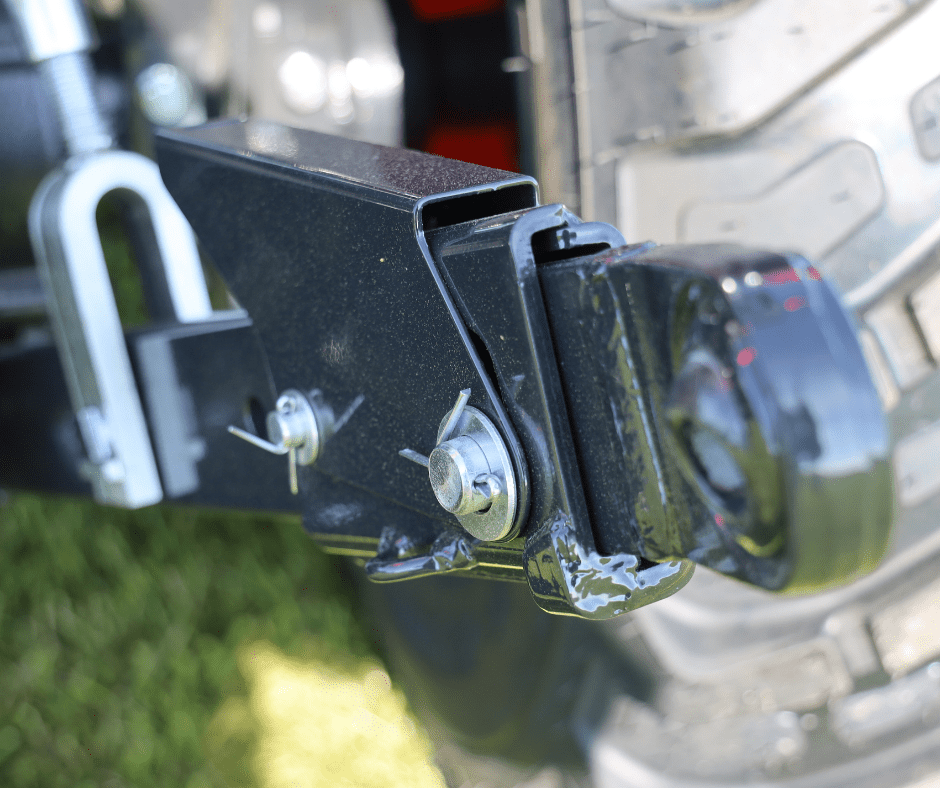

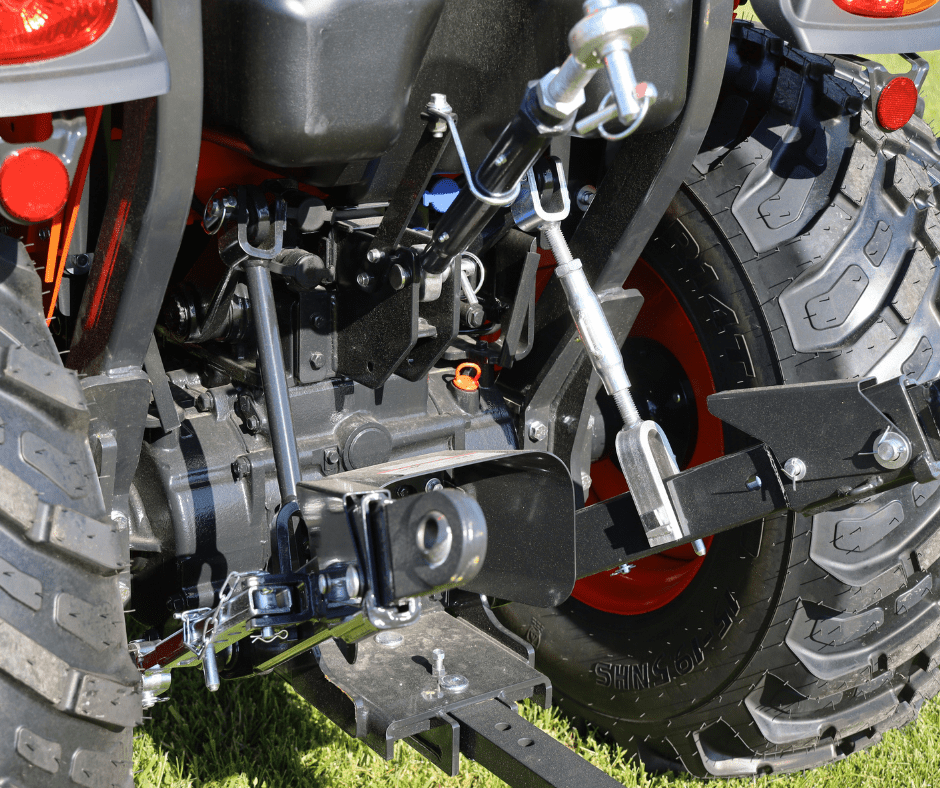

3-Point Hitch

• Standard Category: Category 1
• Lift Capacity, 24″ aft of hitch: 1,631 lb. (740 kg)
• Control Type: Position

Weight

• Weight w/ Ag Tires w/ ROPs: 2,921 lb. (1,325 kg)
