MAIN FEATURES
- Engine Gross Power: 34.9 hp (26 kW)
- PTO Type: Live (SN: TX0600232 and before) / Independent (SN: THH300001 and after)
- Transmission Type: Hydrostatic
- Diesel engine with Daedong ECO Technology

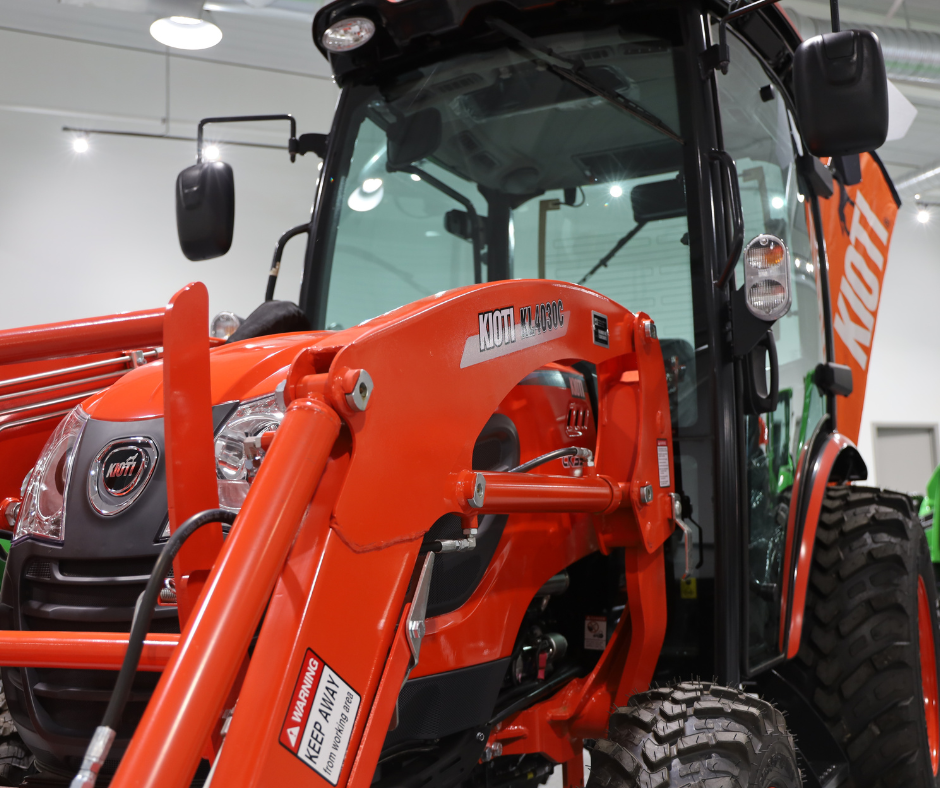

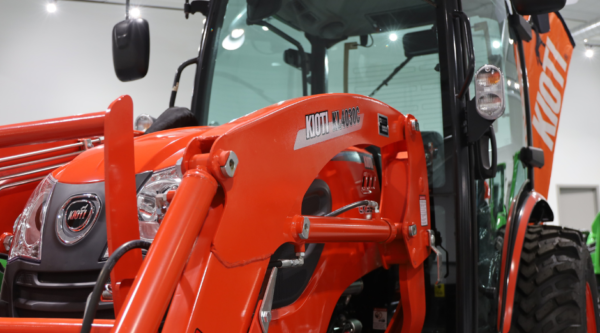

- Factory-Installed Cab

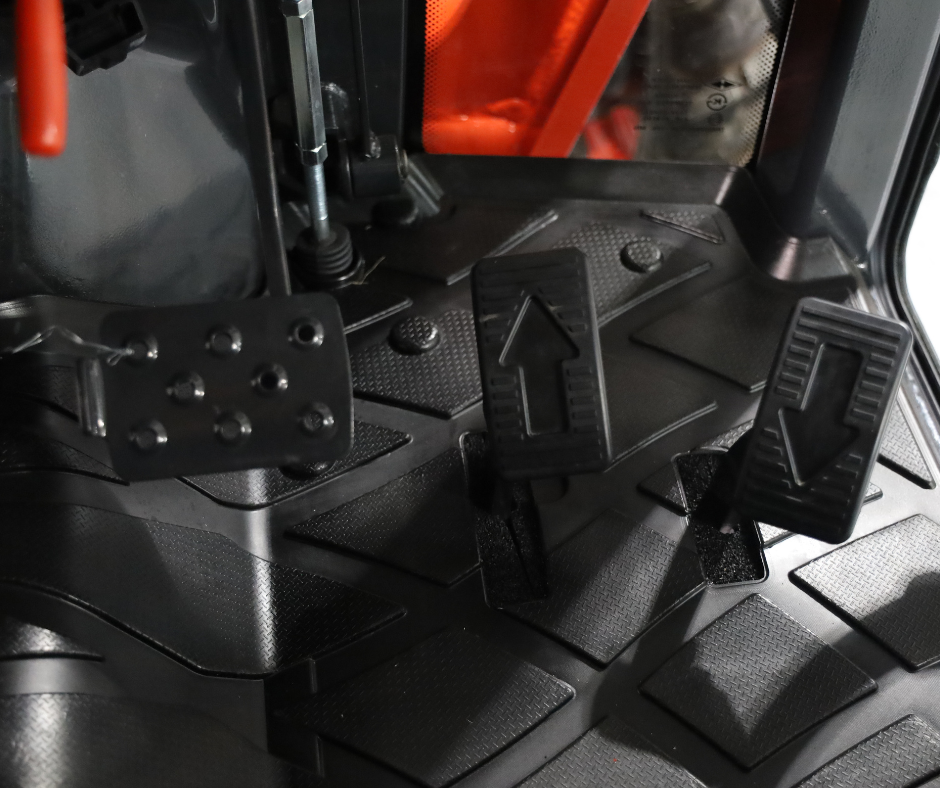

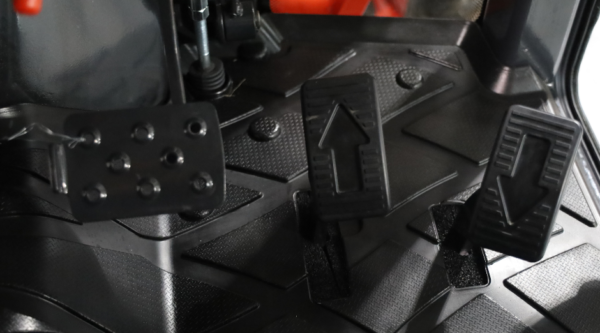

- Dual Pedal HST
- Power Steering
- Single Lever Joystick
FEATURES
- Diesel engine with Daedong ECO Technology: The 34.9 hp (26 kW) ECO-friendly diesel engine provides powerful performance and improves fuel efficiency while reducing noise levels.
- Power Steering: Responsive, powerful and comfortable steering reduces operator fatigue. The power steering system is robustly designed for maneuvering in soft soil and for front loader operation.

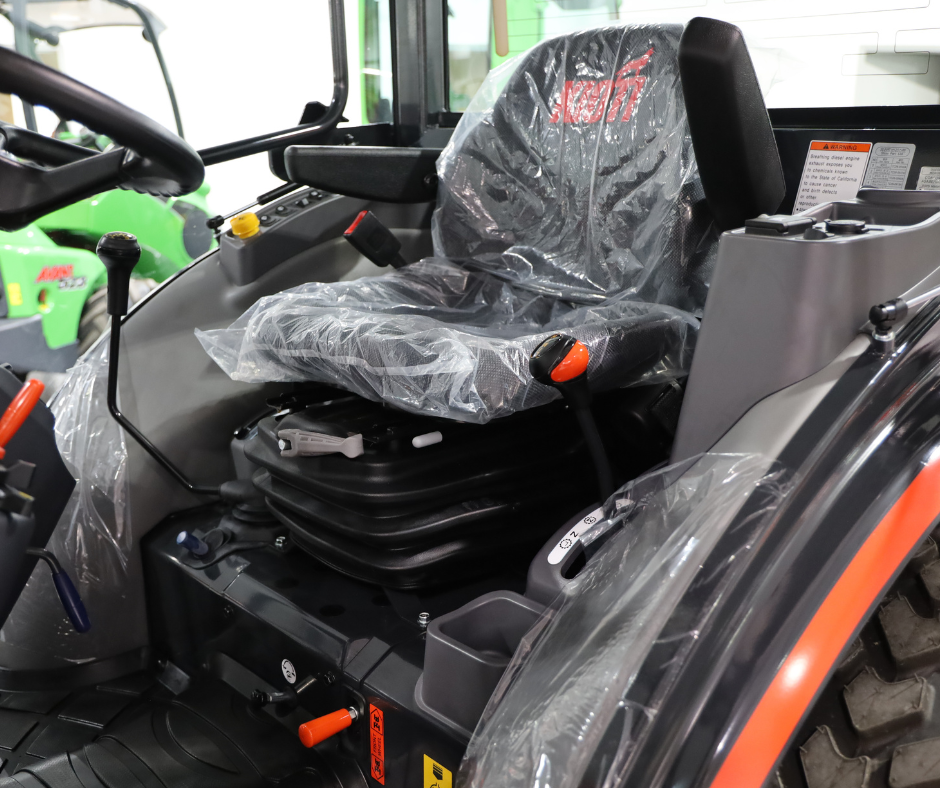

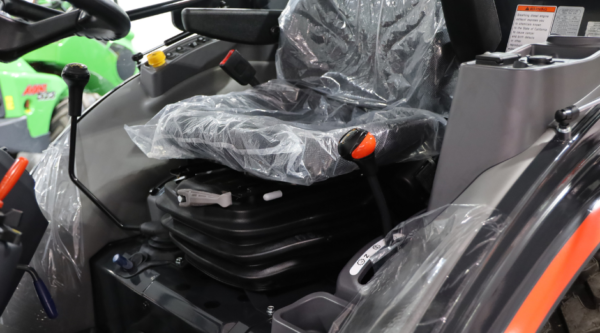

- Deluxe Suspension Seat: No matter what the task may be, the adjustable suspension seat with dual armrests allows the operator to ride in comfort.

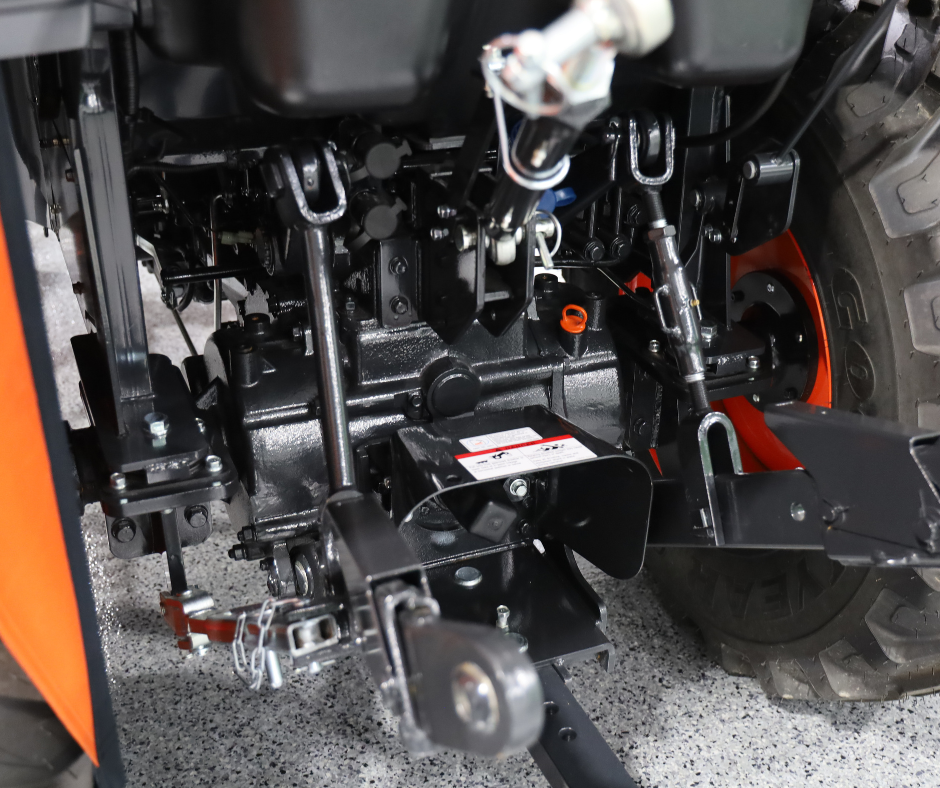

- Rear PTO: Rear PTO is standard and mid PTO is optional.
- Single Lever Joystick: Front end loader work is made easier by the use of a single lever joystick. The lever returns to neutral when released. A float position allows the bucket free flotation over the ground surface.

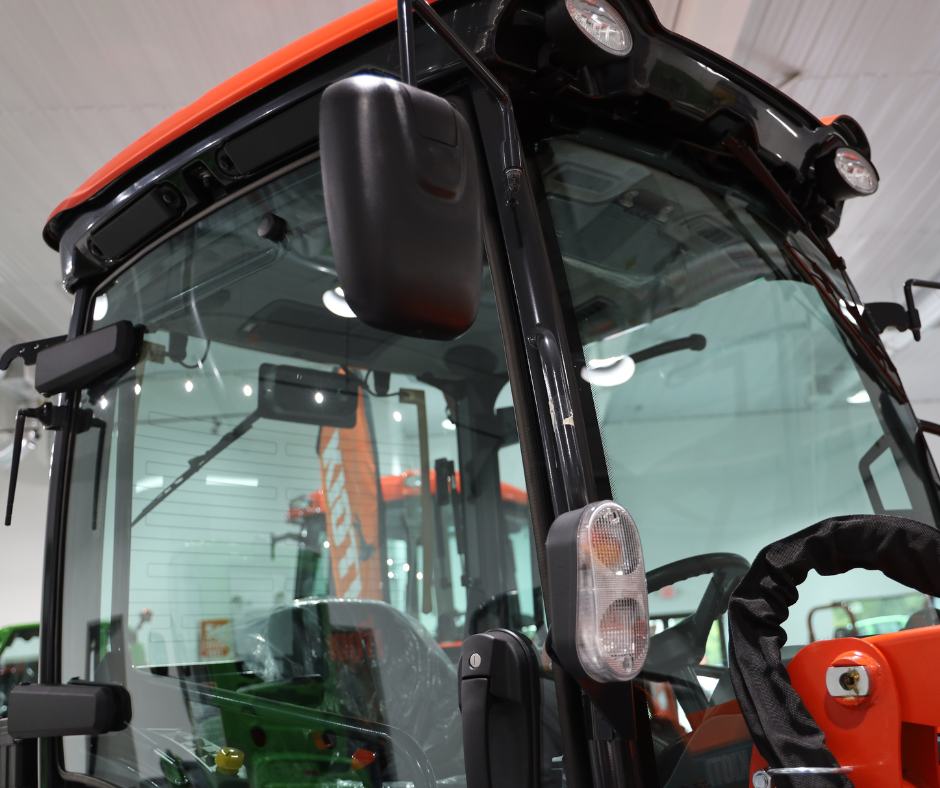

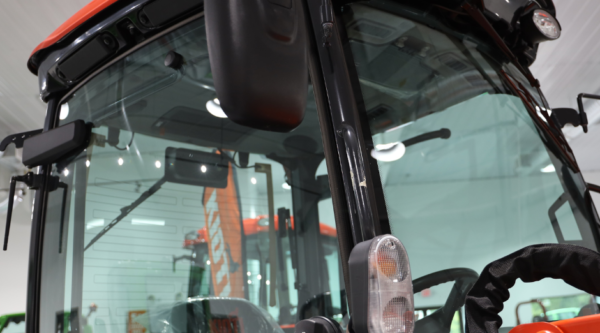

- Factory-Installed Cab: With added features and benefits, including A/C and heat, the factory-installed cab allows operators to perform tasks throughout the year, comfortably.
- Simple Maintenance: KIOTI tractors are designed for easy maintenance. Liftable hoods allow convenient access for daily service checks. Maintaining your tractor for long life and high performance has never been easier.
- Center Marker: The center ridge marker on the hood assists with maintaining straight lines during operation.
- High Ground Clearance: The minimum ground clearance of 13.4 in. provides sufficient clearance for use on rocky or uneven terrain.

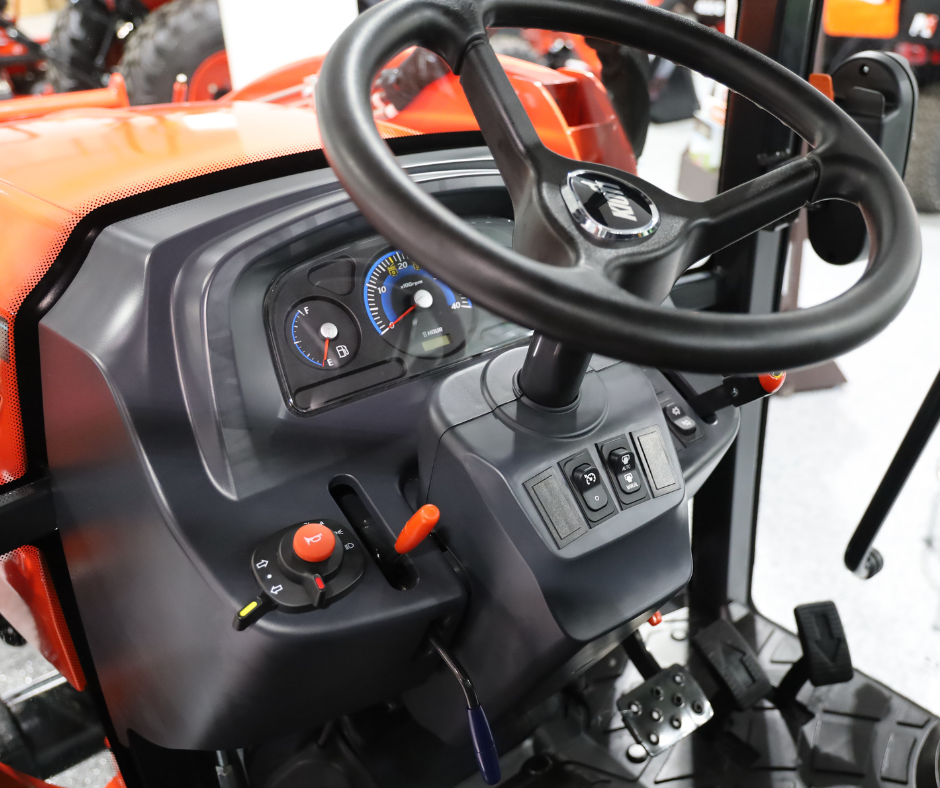

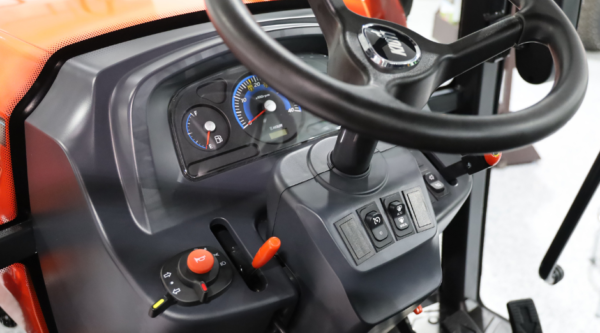

- Illuminated Dashboard: The illuminated dashboard ensures great visibility while working in bright daylight or at night.

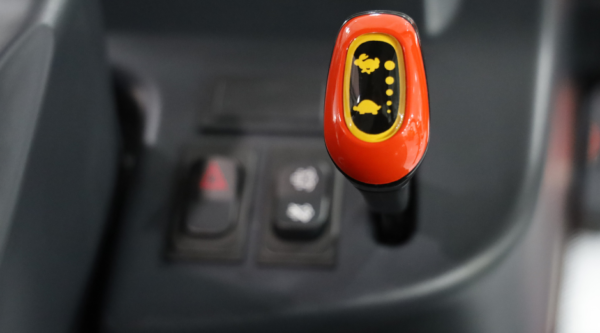

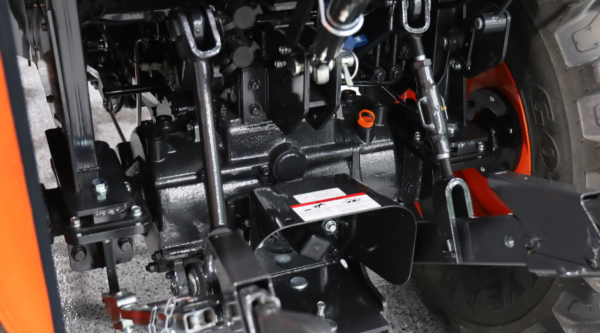

- 3-Point Control Lever: The ergonomic 3-point control lever allows you to easily raise and lower the lift arms when attaching implements. The smooth motion reduces effort and improves control.
- Powerful HST Transmission: This model features a performance proven, heavy-duty HST drive that delivers power and efficiency. The three range transmission (Hi/Mid/Low) with twin pedal operation makes your job easier, smoother and safer.
ENGINE
- Engine Model: 3H-TM4B
- Engine Gross Power: 34.9 hp (26 kW)
- Rated Speed: 2,600 rpm
- No. of Cylinders: 3
- Fuel Type: Diesel
- Displacement: 111.4 cu. in. (1,826 cc)
- Fuel Tank Capacity: 9 gal. (34 L)
TRANSMISSION
- Transmission Type: HST
- No. of Travel Speeds – Forward / Reverse: 3 Range
- Min. Travel Speed of Forward w/ Ag @ Engine rated speed: 0 mph (0 km/h)
- Max. Travel Speed of Forward w/ Ag @ Engine rated speed: 15.4 mph (24.7 km/h)
POWER TAKE-OFF (PTO)
- PTO Type Transmission: Live (SN: TX0600232 and before) / Independent (SN: THH300001 and after)
- PTO Power: 28.9 hp (21.5 kW)
- Rear PTO Speeds (1st): 540 rpm
- Mid PTO Speeds: 2,000 rpm (Optional)
BRAKES AND CLUTCH
- Brakes: Wet Multi Disc
- Clutch: N/A
DIMENSIONS W/ AG TIRE
- Length w/ 3-point hitch: 120.9 in. (3,070 mm)
- Width: 54.5 in. (1,385 mm)
- Height from Top of Cab: 91.7 in. (2,330 mm)
- Wheelbase: 65.7 in. (1,670 mm)
- Ground Clearance: 13.4 in. (340 mm)
- Front Tread Ag Tires – Min: 48.2 in. (1,225 mm)
- Rear Tread Ag Tires – Min: 47.6 in. (1,210 mm)
- Min. Turning Radius w/ Brake: 8 ft. (2.4 m)
HYDRAULICS

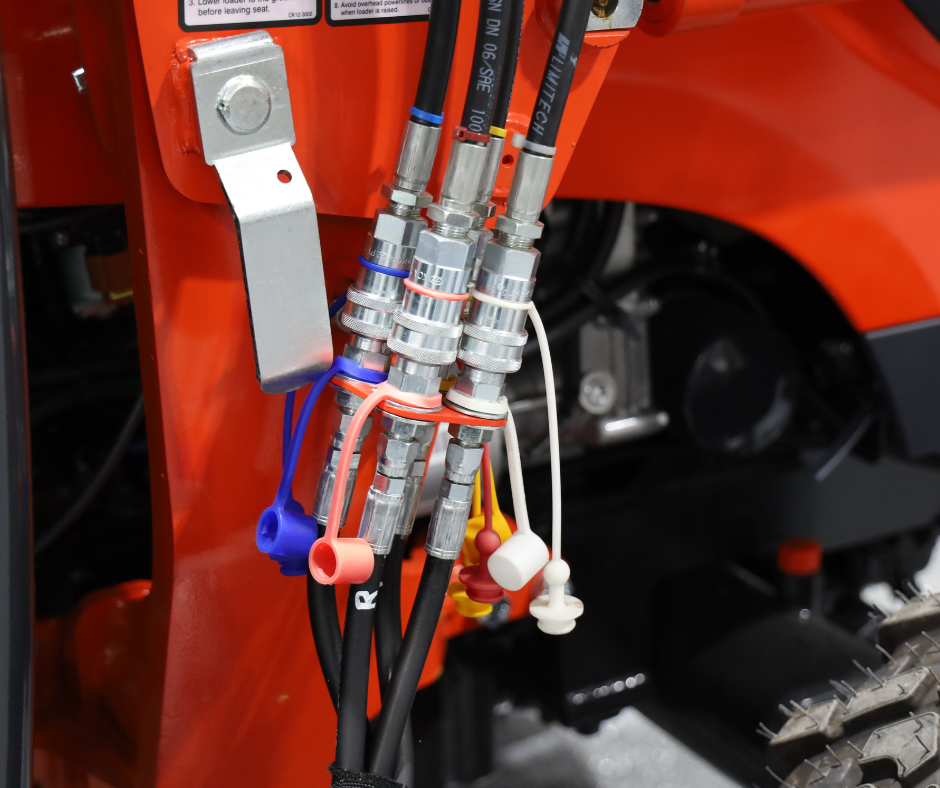

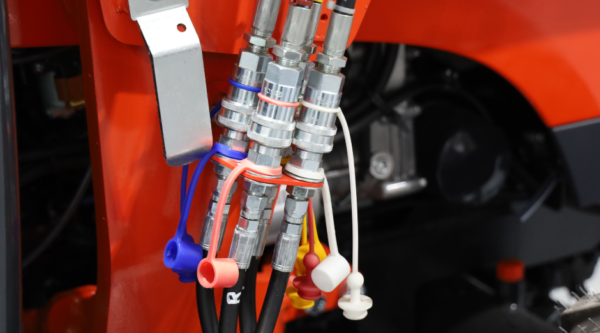

- Total Pump Flow: 11.3 gpm (42.9 L/min)
3-POINT HITCH
- Standard Category: Category 1
- Lift Capacity, 24″ aft of hitch: 1,631 lb. (740 kg)
- Control Type: Position
WEIGHT
- Weight w/ Ag Tires w/ Cab: 3,397 lb. (1,541 kg)
